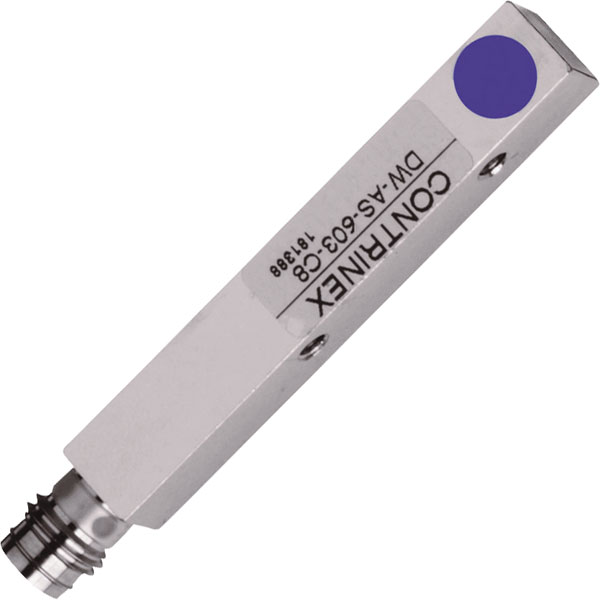

Contrinex DW-AS-603-C8-001 Inductive Sensor, 220 220 088

This high-quality inductive proximity switch from Contrinex has a 1.5mm switching distance and an exceptionally good switching point temperature stability. Suitable applications include presence detection of metal objects, position control, counting tasks, distance control on end positions, quality control, etc.

• 8 x 8 x 59mm
• Terminated by S8 connector
• Small self-contained inductive sensors
• Very rugged and reliable

Type	Inductive proximity switch
Connection	M8 connector, 3-pin
Contact Configuration	NO
IP Rating	IP67
Maximum Temperature	70°C
Min. temperature	-25°C
Operating Temperature	-25 to +70°C
Operating Voltage (DC)	10 to 30V
Output	PNP
Protection Type	IP67
Sensor Type	Inductive
Size	8 x 8mm
Switching Frequency	200 to 3000Hz
