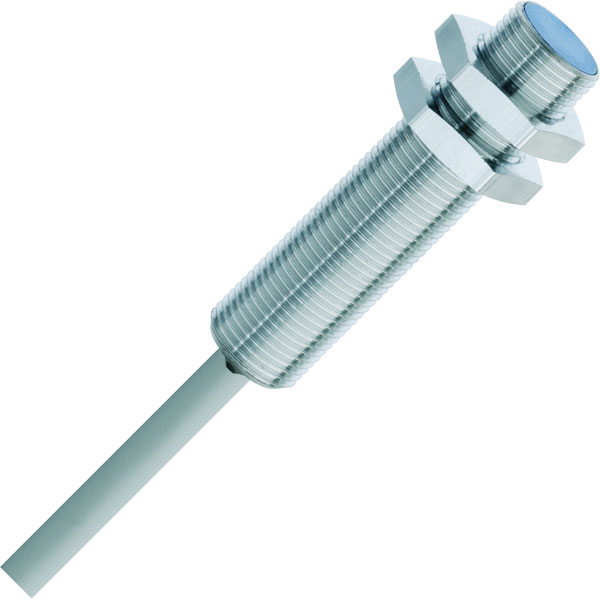

Contrinex 220 820 845 2mm Distance NO M12 Inductive Proximity Switch

A 2mm range inductive proximity sensor that uses an induction loop to sense the presence of metallic objects. Suitable applications for this device include: metal detectors, traffic lights, car washes and automated industrial processes for presence detection, position control, counting and distance control tasks.

• M12 housing
• 2m Cable termination
• NO Output
• Status LED
• Built-in short circuit protection
• Built-in induction protection
• High stability
• High accuracy
• Exceptional reliability
• Fit-and-forget operation
• High repeatability

Type	Inductive proximity switch
Connection	2m cable
Contact Configuration	NO
IP Rating	IP67
Maximum Temperature	70°C
Min. temperature	-25°C
Operating Temperature	-25 to +70°C
Operating Voltage (DC)	10 to 320V
Output	NO
Protection Type	IP67
Sensor Type	Inductive
Size	M12
Switching Frequency	AC ≤25 Hz/DC ≤3000Hz
