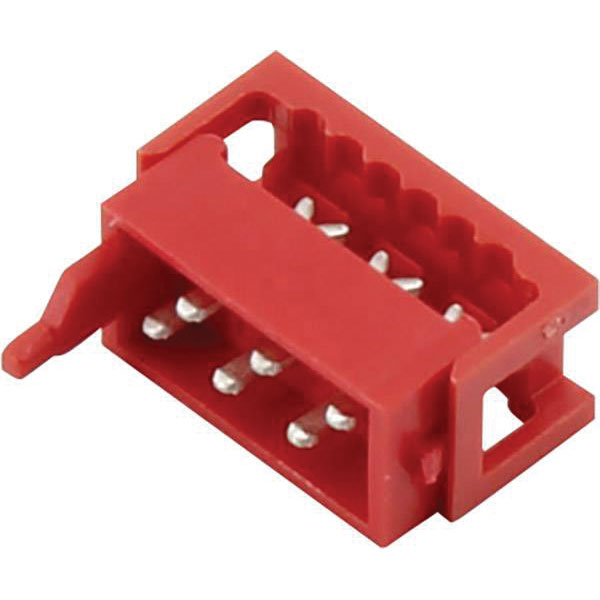

Connfly DS1015-01-08R6 Micro-MaTch Pin Housing 8 Pins 1.27mm Spacing

Image Representative of Range

Connfly DS1015-01-08R6 Micro-MaTch Pin Housing 8 Pins 1.27mm Spacing

Connfly
Extended range
Order Code:

08-7928

Brand: Connfly MPN: DS1015-01-08R6 EAN-13: 2050003634632
Qty Unit Price (Ex VAT)
1+ £0.477
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 7 weeks

Manufactured by Connfly, the DS1015-01-08R6 is an 8-pin housing cable with a Micro-MaTch design and a contact spacing of 1.27 mm. This component is ideal for compact and high-density electronic connections where space-saving and reliability are crucial. Commonly used in telecommunications and consumer electronics, it provides efficient interconnection solutions.
Case material Thermoplastic UL94V-O
Connection Cut & Clip
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector type Plug, straight
Contact material Copper alloy
CS 1.27mm
Dim (W x H) 5 mm x 3.60 mm
Factory colour Red
Height 3.60mm
Industrial packaging No
Insulation material Thermoplastic UL94V-O
Manufacturer part # DS1015-01-08R6
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute DS1015-01-08R6
No. of rows 2
Pin shape Rectangular
Pins per row 4
RoHS-compliant Yes
Series Micro-MaTch
Total number of pins 8
Type Pin housing cable
Width 5mm
