Conec 42-00012 SAL-8-RKC4-S Cable Connector, Screw Terminal, On-Site Use

Conec
Standard range
Order Code:

11-6412

Brand: Conec MPN: 42-00012 EAN-13: 2050001510662
Qty Unit Price (Ex VAT)
1+ £9.16
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
24 in stock, despatched in 4 working days

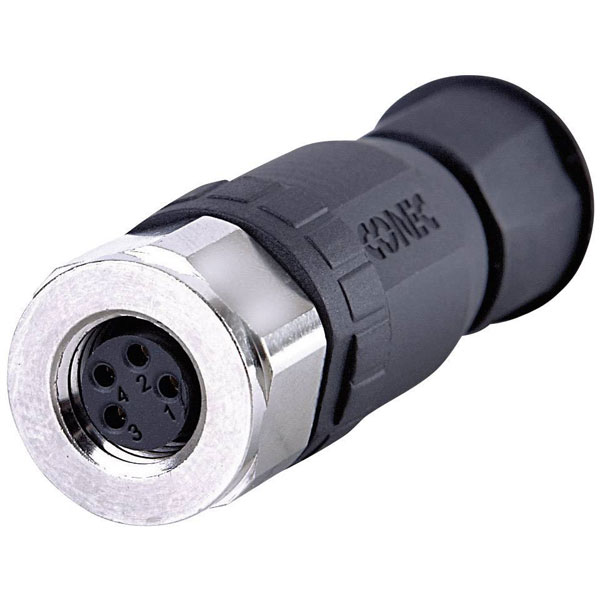

The Conec sensor/actuator connector, model 42-00012 SAL-8-RKC4-S, is manufactured by Conec. It features robust contact reliability and is designed for use in challenging industrial environments. Typical applications include automation systems and machinery requiring secure and reliable connectivity.
Type Sensor/actuator connector
Cable diameter (details) 4mm
Connection Screw terminal
Connection side A M8 socket, straight
Connection side B Customisable
Connector cross-section (max.) 0.50mm²
Connector type Socket, straight
Contact material CuZn
Contact surface Gold plated
IP rating IP67 (when locked)
Max. temperature +85°C
Min. temperature -30°C
Misc Attribute SAL-8-RKC4-S
No. of pins 4
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 30V
RoHS-compliant Yes
Seal type Screw-on
Thread type connection side M8
