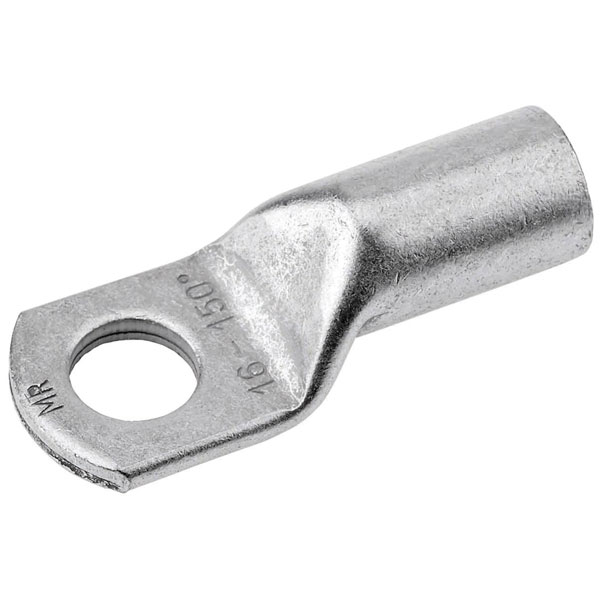

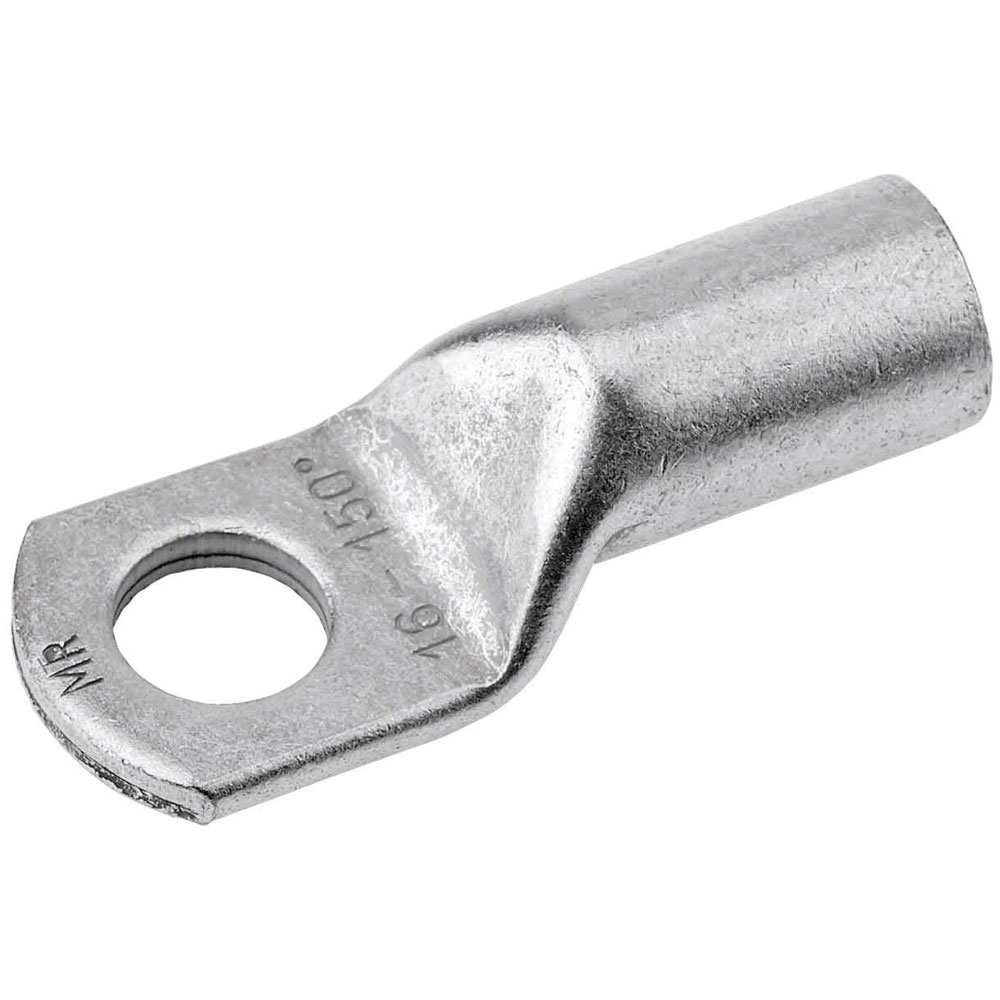

Cimco 183156 Crimp Cable Lug 90° M6 35mm² Hole Dia 6.5mm 1 piece

Image Representative of Range

Cimco 183156 Crimp Cable Lug 90° M6 35mm² Hole Dia 6.5mm 1 piece

Cimco
Standard range
Order Code:

11-6143

Brand: Cimco MPN: 183156 EAN-13: 2050001253026
Qty Unit Price (Ex VAT)
1+ £1.17
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
293 in stock, despatched in 4 working days

The Cimco crimp cable lug 183156 is designed for secure electrical connections, featuring a 90-degree blade terminal and M6 size suitable for 35 mm² cables. With a hole diameter of 6.5 mm, it ensures a firm fit for reliable conductivity. This component is typically used in electrical installations where compact and durable cable connections are essential.
Connection angle 90°
Contact material Cathode copper, tin plated
Cross section 35mm²
Hole Ø 6.5mm
Manufacturer part # 183156
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 35mm²
Misc Attribute 1 90°
Misc Attribute 2 183156
RoHS-compliant Yes
Size M6
Thread Size M6
Type Crimp cable lug
