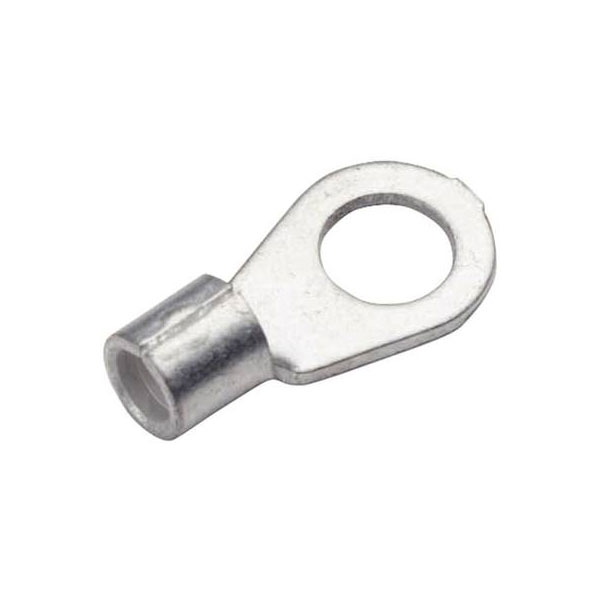

Cimco 180462 Ring Terminal 35mm² Max Cross Section Dia10.5mm Non-Insulated

Image Representative of Range

Cimco 180462 Ring Terminal 35mm² Max Cross Section Dia10.5mm Non-Insulated

Cimco
Standard range
Order Code:

11-6014

Brand: Cimco MPN: 180462 EAN-13: 2050001250032
Qty Unit Price (Ex VAT)
1+ £0.791
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
140 in stock, despatched in 4 working days

The Cimco 180462 ring terminal is a metal, non-insulated crimp connector with a maximum cross-section of 35 mm² and a hole diameter of 10.5 mm. This durable connector is ideal for automotive and car applications where robust and solder-free connections are required. As a high-quality product from Cimco, it ensures reliable performance in demanding electrical installations.
Contact material Cathode copper, tin plated
Cross section 35mm²
Cross-section range 35 mm² (max)
Factory colour Metal
Hole Ø 10.5mm
Insulation type Not insulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 35mm²
RoHS-compliant Yes
Size M10
Support sleeve No
Thread Size M10
Type Ring terminal
