Cimco 180410 Ring Terminal 2.50 mm² 5.3 mm Hole Not Insulated Metal

Image Representative of Range

Cimco 180410 Ring Terminal 2.50 mm² 5.3 mm Hole Not Insulated Metal

Cimco
Order Code:

11-5988

Brand: Cimco MPN: 180410 EAN-13: 2050001249784
Qty Unit Price (Ex VAT)
50+ £0.121
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
537 in stock, despatched in 4 working days

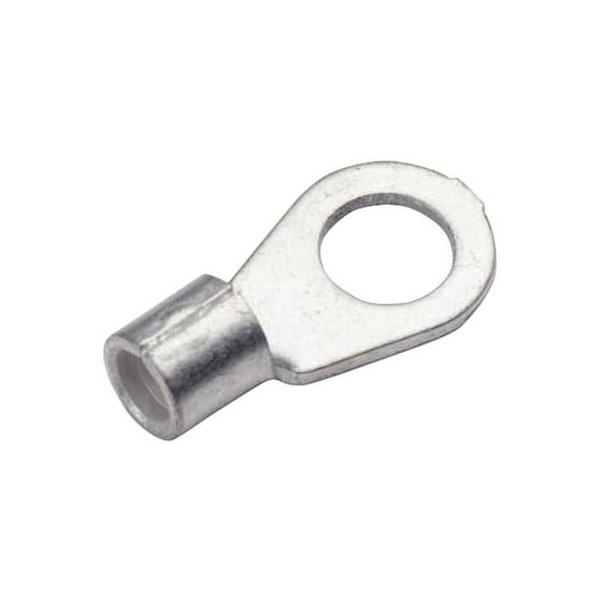

Cimco's 180410 ring terminal, made of metal and not insulated, features a cross section up to 2.50 mm² and a hole diameter of 5.3 mm. This crimp connector is commonly used as an automotive crimp terminal. Suitable for automotive and electrical applications, it provides a reliable and solder-free connection.
Colour Metal
Insulated Not insulated
Contact Material Cathode copper, tin plated
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Hole Ø 5.3mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 2.50mm²
Min. cross section 1.50mm²
Size M5
Support sleeve No
Thread Size M5
Type Ring terminal
