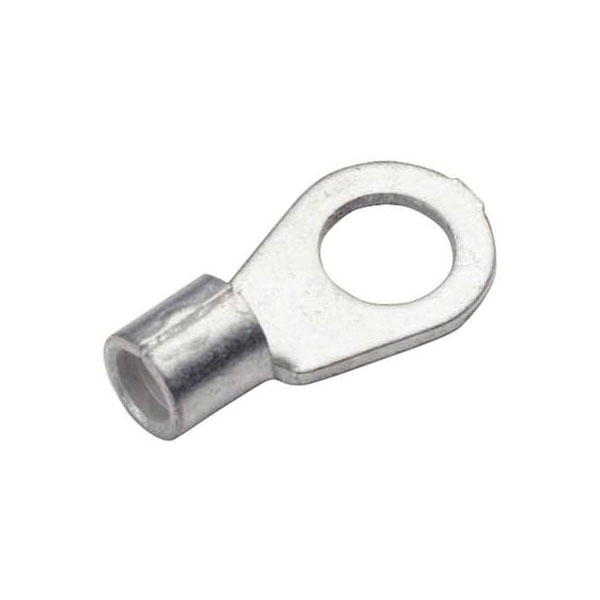

Cimco 180400 Ring Terminal 1mm² 3.2mm Hole Non-Insulated Metal

The Cimco 180400 is a metal ring terminal designed for a maximum cross-section of 1 mm² and features a 3.2 mm hole diameter. This non-insulated crimp connector is ideal for automotive or car applications where solder-free connections are necessary. Its robust design ensures reliable performance in various electrical installations.

Colour	Metal
Insulated	Not insulated
Stud Size	3.2mm
Maximum Wire Size (mm2)	1mm
Contact Material	Cathode copper, tin plated
Cross-section range	0.50 - 1mm²
Hole Ø	3.2mm
Material (details)	Cu-ETP according to DIN EN 13600
max. cross section	1mm²
Maximimum Wire Gauge (AWG)	17
Min. cross section	0.50mm²
Product Type	Ring Terminal
Support sleeve	No
Thread Size	M3
