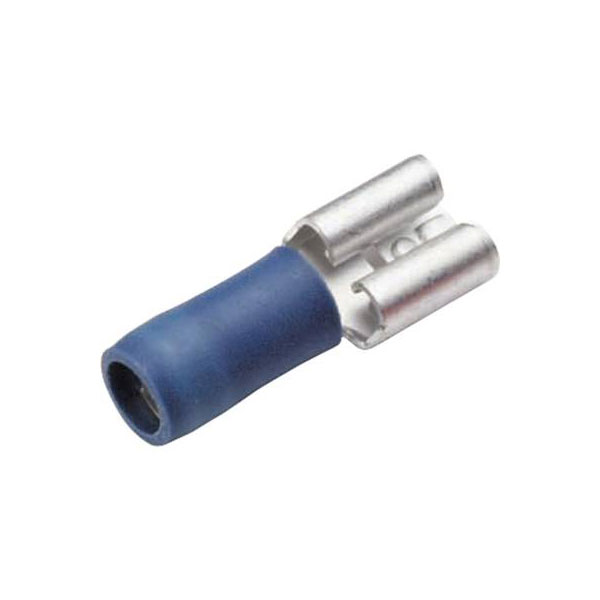

Cimco 180260 Blade Receptacle 4.8mm 0.8mm 180° Partly Insulated Blue

Image Representative of Range

Cimco 180260 Blade Receptacle 4.8mm 0.8mm 180° Partly Insulated Blue

Cimco
Standard range
Order Code:

11-5957

Brand: Cimco MPN: 180260 EAN-13: 2050001251213
Qty Unit Price (Ex VAT)
1+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
182 in stock, despatched in 4 working days

The Cimco 180260 blade receptacle is a partially insulated, blue crimp connector with a width of 4.8 mm and a thickness of 0.8 mm, designed for secure electrical connections. It features a 180° orientation, making it suitable for aligning with flat blade terminals in various installations. This receptacle is commonly used in automotive and electrical applications where reliable and stable connections are essential.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1,5 - 2,5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material Polyamide 6.6
Insulation type Partially insulated
Manufacturer part # 180260
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 180260
Size 4.8 x 0.8 mm
Temperature range -60 - +105°C
Type Blade receptacle
