Cimco 180252 Blade Receptacle 2.8mm Width 0.8mm Thick Red 1 piece

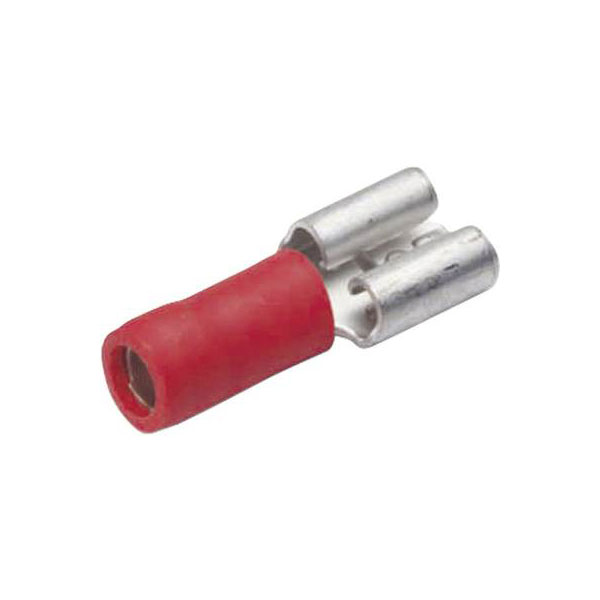

Image Representative of Range

Cimco 180252 Blade Receptacle 2.8mm Width 0.8mm Thick Red 1 piece

Cimco
Standard range
Order Code:

11-5953

Brand: Cimco MPN: 180252 EAN-13: 2050001251176
Qty Unit Price (Ex VAT)
1+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
333 in stock, despatched in 4 working days

Cimco offers the 180252 blade receptacle, characterised by a 2.8 mm connector width and a 0.8 mm thickness, with a partially insulated red design. This crimp connector is ideal for secure electrical terminations, typically used in automotive and electronic applications. Its robust design ensures reliable connections in demanding environments.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0,5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially insulated
Insulation material Polyamide 6.6
Insulation type Partially insulated
Manufacturer part # 180252
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 2 180252
Size 2.8 x 0.8 mm
Temperature range -60 - +105°C
Type Blade receptacle
