Cimco 180248 Blade Receptacle 4.8mm Width 0.5mm Thickness 180° Blue

Image Representative of Range

Cimco 180248 Blade Receptacle 4.8mm Width 0.5mm Thickness 180° Blue

Cimco
Standard range
Order Code:

11-5950

Brand: Cimco MPN: 180248 EAN-13: 2050001251145
Qty Unit Price (Ex VAT)
1+ £0.277
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
282 in stock, despatched in 4 working days

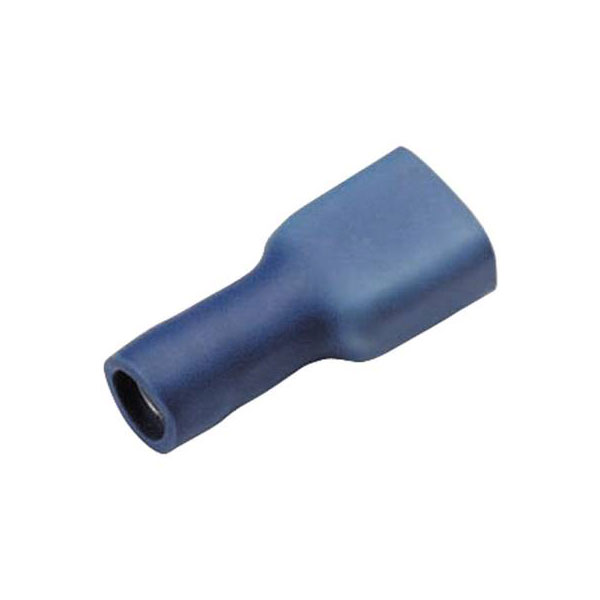

The Cimco 180248 is a blue insulated blade receptacle with a connector width of 4.8 mm and a thickness of 0.5 mm. Manufactured by Cimco, this crimp connector offers a 180° connection angle ideal for secure wiring in electrical installations. It is commonly used in automotive and industrial applications where reliable electrical connections are essential.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1,5 - 2,5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Fully insulated
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Size 4.8 x 0.5 mm
Temperature range -60 - +105°C
Type Blade receptacle
