Cimco 180247 Blade Receptacle 2.8mm Width 0.8mm Thickness Blue

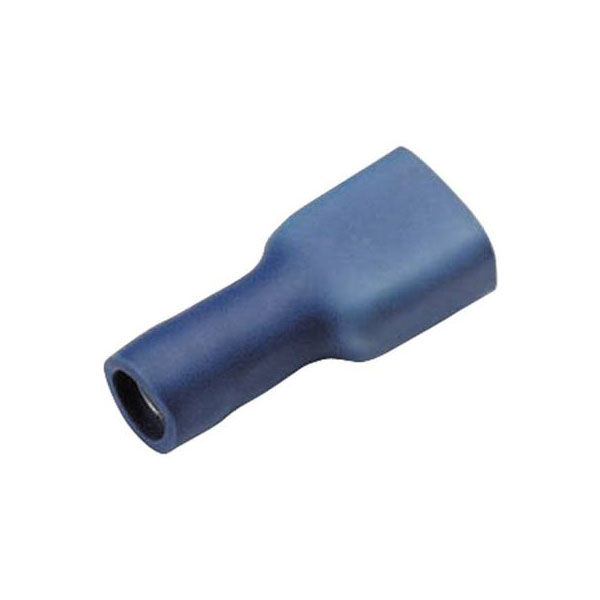

Image Representative of Range

Cimco 180247 Blade Receptacle 2.8mm Width 0.8mm Thickness Blue

Cimco
Standard range
Order Code:

11-5949

Brand: Cimco MPN: 180247 EAN-13: 2050001251138
Qty Unit Price (Ex VAT)
1+ £0.277
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
504 in stock, despatched in 4 working days

The Cimco 180247 blade receptacle is a blue, insulated connector with a width of 2.8 mm and thickness of 0.8 mm. This crimp connector is designed for secure electrical connections, suitable for various wiring and repair applications. Typical uses include automotive, industrial, and household electrical systems.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 1,5 - 2,5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Fully insulated
Insulation material Polyamide 6.6
Insulation type Insulated
Manufacturer part # 180247
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 2 180247
Size 2.8 x 0.8 mm
Temperature range -60 - +105°C
Type Blade receptacle
