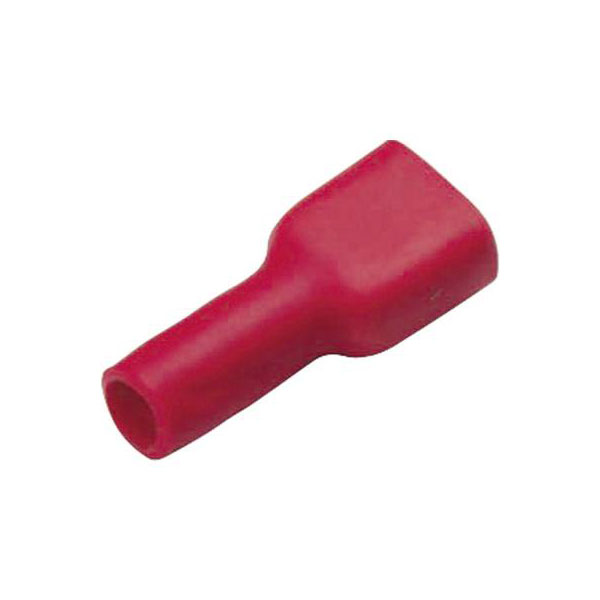

Cimco 180245 Blade Receptacle 4.8mm x 0.8mm 180° Insulated Red

Image Representative of Range

Cimco 180245 Blade Receptacle 4.8mm x 0.8mm 180° Insulated Red

Cimco
Standard range
Order Code:

11-5947

Brand: Cimco MPN: 180245 EAN-13: 2050001251114
Qty Unit Price (Ex VAT)
1+ £0.277
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
329 in stock, despatched in 4 working days

Cimco's 180245 blade receptacle features a 4.8 mm connector width and 0.8 mm thickness, insulated in red for enhanced safety. This crimp connector is typically used for secure electrical connections in automobiles and home appliances. It offers a straightforward, reliable solution for terminating wires in various electrical systems.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0,5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Fully insulated
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Size 4.8 x 0.8 mm
Temperature range -60 - +105°C
Type Blade receptacle
