Cimco 180244 Blade Receptacle 4.8mm 0.5mm 180° Insulated Red 1 piece

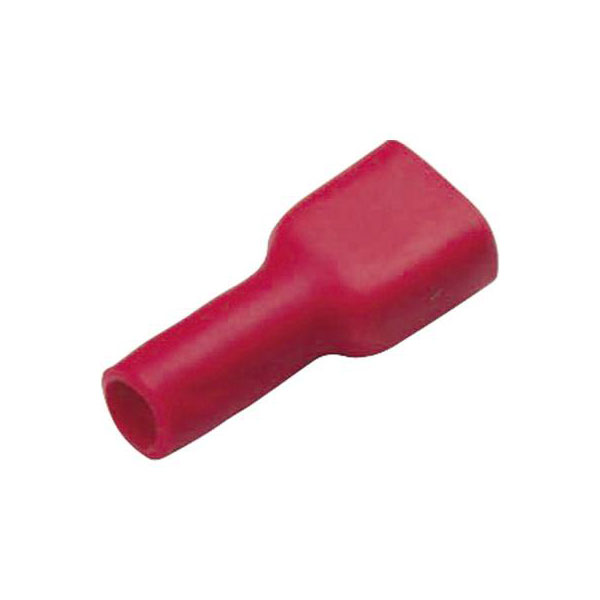

Image Representative of Range

Cimco 180244 Blade Receptacle 4.8mm 0.5mm 180° Insulated Red 1 piece

Cimco
Order Code:

11-5946

Brand: Cimco MPN: 180244 EAN-13: 2050001251107
Qty Unit Price (Ex VAT)
20+ £0.283
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
399 in stock, despatched in 4 working days

Cimco's 180244 blade receptacle features a connector width of 4.8 mm and a thickness of 0.5 mm with 180° insulation in red. This crimp connector is ideal for secure electrical connections in various wiring applications. Often used in automotive and electrical installations, it ensures reliable conductivity and protection.
Insulation Polyamide 6.6
Colour Red
Type Blade receptacle
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact Material Brass tin plated
Cross Section 0,5 - 1mm²
Cross-section range 0.50 - 1 mm²
Insulation Type Insulated
max. cross section 1mm²
Min. cross section 0.50mm²
Size 4.8 x 0.5 mm
Temperature Range -60 - +105°C
