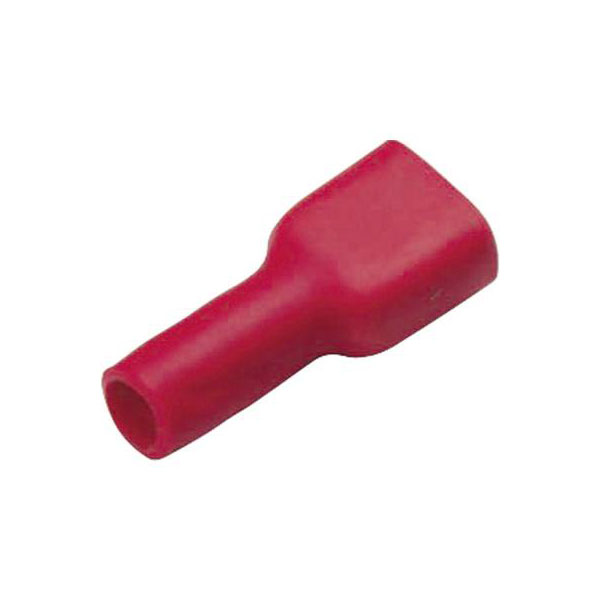

Cimco 180241 Blade Receptacle 2.8mm Width 0.5mm Thick Insulated Red

Image Representative of Range

Cimco 180241 Blade Receptacle 2.8mm Width 0.5mm Thick Insulated Red

Cimco
Standard range
Order Code:

11-5943

Brand: Cimco MPN: 180241 EAN-13: 2050001251077
Qty Unit Price (Ex VAT)
1+ £0.277
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
860 in stock, despatched in 4 working days

The Cimco 180241 blade receptacle is an insulated, red-coloured crimp connector with a width of 2.8 mm and a thickness of 0.5 mm, designed for secure electrical connections. Manufactured by Cimco, this 180° blade terminal receptacle is ideal for applications requiring reliable terminations in automotive and electronic installations. Its compact size and insulation make it suitable for use in tight spaces where safety and durability are critical.
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0,5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Fully insulated
Insulation material Polyamide 6.6
Insulation type Insulated
Manufacturer part # 180241
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.5 mm
Misc Attribute 2 180241
Size 2.8 x 0.5 mm
Temperature range -60 - +105°C
Type Blade receptacle
