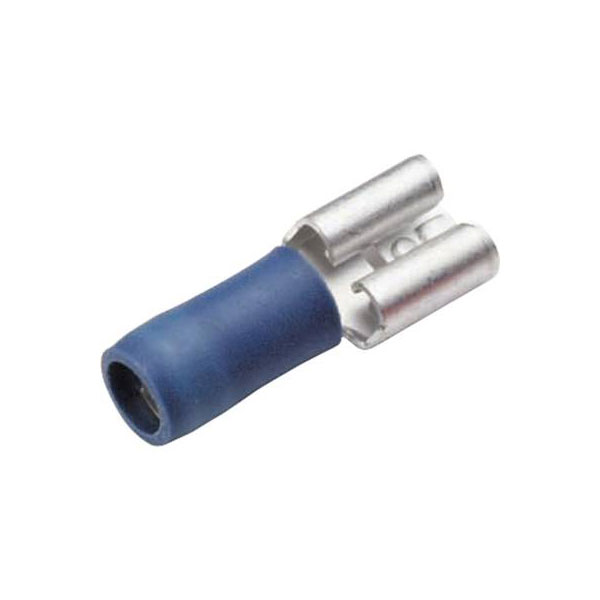

Cimco 180238 Blade Receptacle 2.8mm Wide 0.8mm Thick Blue 1 piece

Image Representative of Range

Cimco 180238 Blade Receptacle 2.8mm Wide 0.8mm Thick Blue 1 piece

Cimco
Standard range
Order Code:

11-5941

Brand: Cimco MPN: 180238 EAN-13: 2050001251053
Qty Unit Price (Ex VAT)
1+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
425 in stock, despatched in 4 working days

The Cimco 180238 blade receptacle is a 2.8 mm wide and 0.8 mm thick connector that is partially insulated and coloured blue. It is commonly used in electrical applications for secure connections and reliable performance. This crimp connector is suitable for various industries where compact and efficient electrical solutions are required.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 1,5 - 2,5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material Polyamide 6.6
Insulation type Partially insulated
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Size 2.8 x 0.8 mm
Temperature range -60 - +105°C
Type Blade receptacle
