Cimco 180232 Blade Receptacle 6.3mm Width 0.8mm Thickness Blue

Image Representative of Range

Cimco 180232 Blade Receptacle 6.3mm Width 0.8mm Thickness Blue

Cimco
Standard range
Order Code:

11-5937

Brand: Cimco MPN: 180232 EAN-13: 2050001251015
Qty Unit Price (Ex VAT)
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,691 in stock, despatched in 4 working days

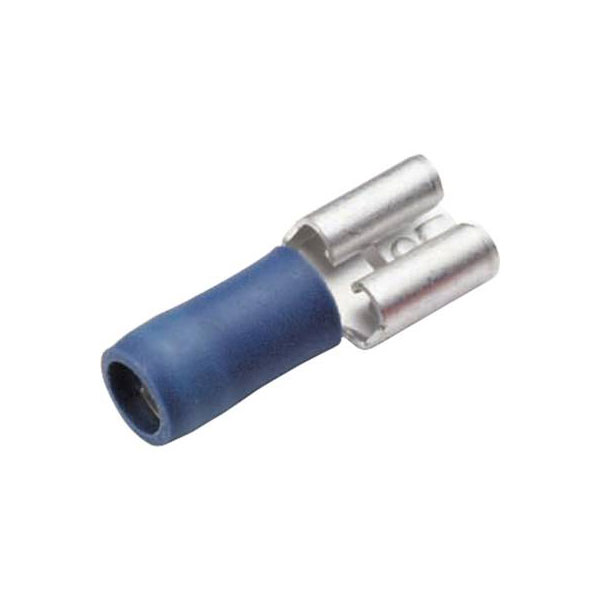

Cimco offers the 180232 blade receptacle with a connector width of 6.3 mm and a thickness of 0.8 mm. This partially insulated blue crimp connector is designed for secure electrical connections. It is typically used in automotive and electrical wiring applications for efficient and reliable hookups.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1,5 - 2,5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material Polyamide 6.6
Insulation type Partially insulated
Material (details) CuZn · Insulation: Halogen-free PA polyamide
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8 mm
Size 6.3 x 0.8 mm
Temperature range -60 - +105°C
Type Blade receptacle
