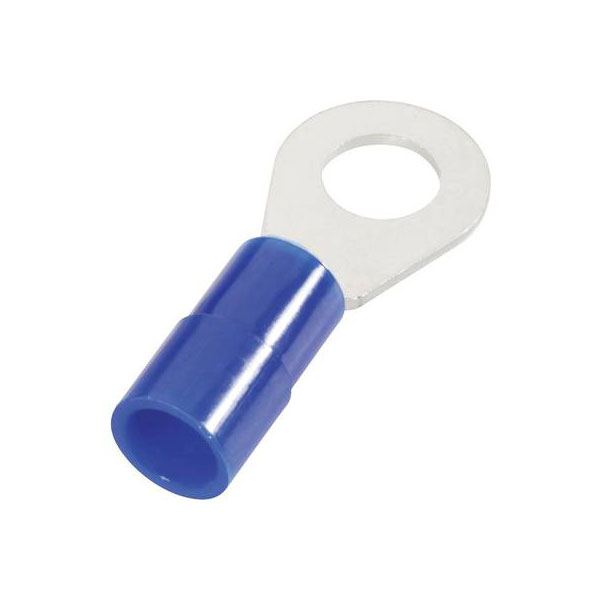

Cimco 180084 Ring Terminal 16mm² 8.4mm Hole Partially Insulated Blue

Image Representative of Range

Cimco 180084 Ring Terminal 16mm² 8.4mm Hole Partially Insulated Blue

Cimco
Order Code:

11-5910

Brand: Cimco MPN: 180084 EAN-13: 2050001250742
Qty Unit Price (Ex VAT)
5+ £0.830
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
350 in stock, despatched in 4 working days

The Cimco 180084 ring terminal is a partially insulated, blue connector with a maximum cross section capacity of 16 mm² and a hole diameter of 8.4 mm. This crimp connector is solder-free, making it suitable for automotive and car applications. Typically used for secure and reliable electrical connections, the ring terminal is ideal in automotive installations and repair tasks.
Colour Blue
Insulated Partially insulated
Contact Material Cathode copper, tin plated
Cross Section 16mm²
Cross-section range 16 mm² (max)
Hole Ø 8.4mm
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 16mm²
Size M8
Support sleeve Yes
Temperature Range -60 - +105°C
Thread Size M8
Type Ring terminal
