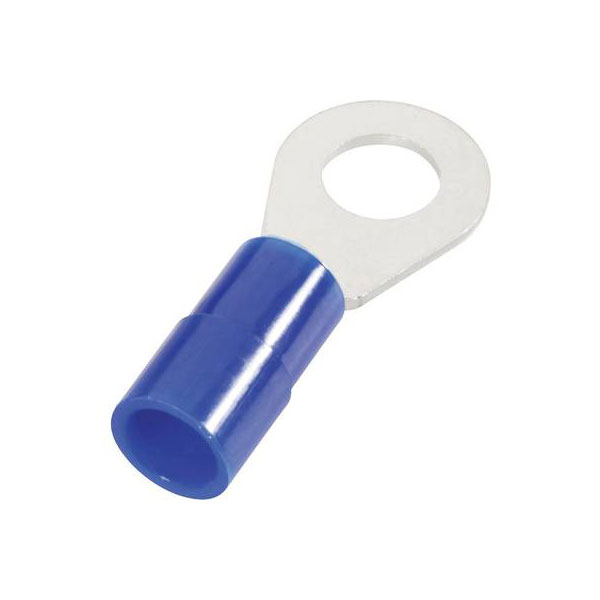

Cimco 180080 Ring Terminal 16mm² 5.3mm Hole Blue 1 piece Insulated

Cimco manufactures the 180080 ring terminal, featuring a cross-section capacity of up to 16 mm² and a 5.3 mm hole diameter, partially insulated in blue. This crimp connector is ideal for automotive applications, providing a solder-free connection. It's commonly used as a reliable and efficient terminal for electrical installations in vehicles.

Colour	Blue
Insulated	Partially insulated
Stud Size	5.3mm
Maximum Wire Size (mm2)	16mm
Contact Material	Cathode copper, tin plated
Cross Section	16mm²
Cross-section range	16 mm² (max)
Hole Ø	5.3mm
Material (details)	Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section	16mm²
Maximimum Wire Gauge (AWG)	6
Product Type	Ring Terminal
Size	M5
Support sleeve	Yes
Temperature Range	-60 - +105°C
Thread Size	M5
