Cimco 180078 Ring Terminal Max 10mm² Hole Dia13mm Red Partially Insulated

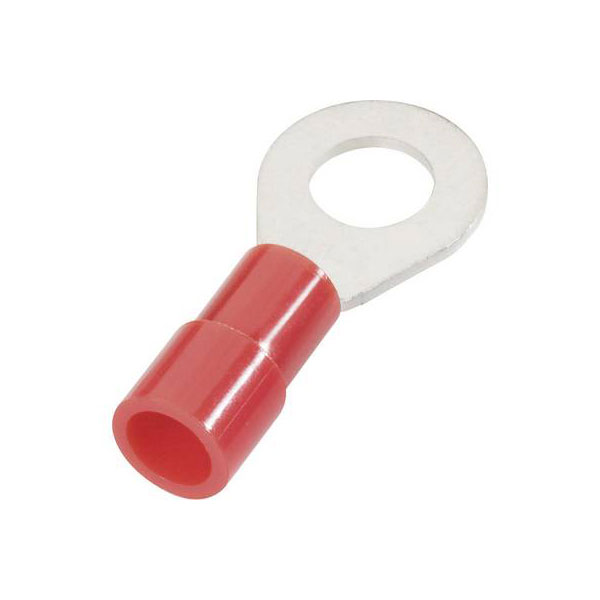

Image Representative of Range

Cimco 180078 Ring Terminal Max 10mm² Hole Dia13mm Red Partially Insulated

Cimco
Order Code:

11-5907

Brand: Cimco MPN: 180078 EAN-13: 2050001250711
Qty Unit Price (Ex VAT)
10+ £0.712
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
132 available to back orderBack-order availability date - 11/01/2026

The Cimco ring terminal, model 180078, is a partially insulated, red crimp connector designed with a 10 mm² maximum cross section and a 13 mm hole diameter. This robust solder-free connector ensures a secure connection for various automotive and electrical applications. Manufactured by Cimco, it is suitable for use in automotive and car electrical systems, providing reliability and performance.
Colour Red
Insulated Partially insulated
Contact Material Cathode copper, tin plated
Cross Section 10mm²
Cross-section range 10 mm² (max)
Hole Ø 13mm
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 10mm²
Size M12
Support sleeve Yes
Temperature Range -60 - +105°C
Thread Size M12
Type Ring terminal
