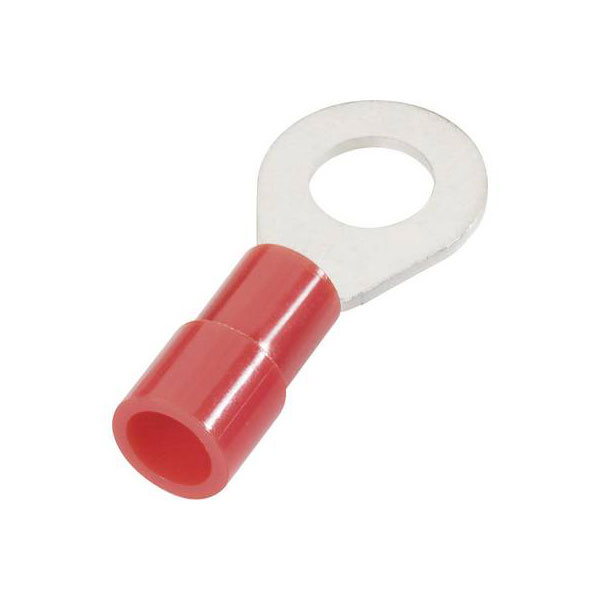

Cimco 180076 Ring Terminal 10mm² 10.5mm Dia Partially Insulated Red

The Cimco 180076 is a red, partially insulated ring terminal with a maximum cross-section of 10 mm² and a hole diameter of 10.5 mm. Designed for solder-free connections, it is ideal for automotive and car crimping applications. This product offers reliable performance and ease of use in electrical installations.

Colour	Red
Insulated	Partially insulated
Stud Size	10.5mm
Maximum Wire Size (mm2)	10mm²
Contact Material	Cathode copper, tin plated
Cross Section	10mm²
Cross-section range	10 mm² (max)
Hole Ø	10.5mm
Material (details)	Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section	10mm²
Maximimum Wire Gauge (AWG)	8
Product Type	Ring Terminal
Size	M10
Support sleeve	Yes
Temperature Range	-60 - +105°C
Thread Size	M10
