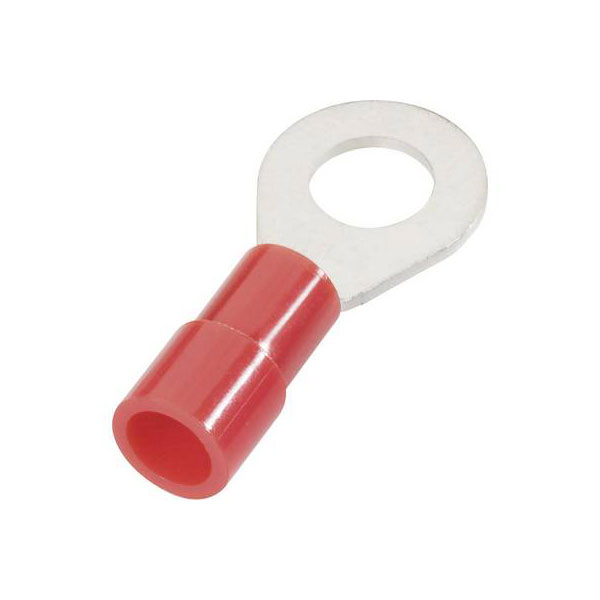

Cimco 180074 Ring Terminal 10mm² 8.4mm Hole Red Partially Insulated

Image Representative of Range

Cimco 180074 Ring Terminal 10mm² 8.4mm Hole Red Partially Insulated

Cimco
Standard range
Order Code:

11-5905

Brand: Cimco MPN: 180074 EAN-13: 2050001250698
Qty Unit Price (Ex VAT)
1+ £0.652
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
819 in stock, despatched in 4 working days

Cimco's 180074 ring terminal is partially insulated and designed for a maximum cross section of 10 mm², featuring an 8.4 mm hole diameter. This automotive crimp connector is ideal for applications in car electrical systems where a robust and reliable connection is required. The terminal is particularly suited for use in solder-free installations.
Contact material Cathode copper, tin plated
Cross section 10mm²
Cross-section range 10 mm² (max)
Factory colour Red
Hole Ø 8.4mm
Insulation material Polyamide
Insulation type Partially insulated
Manufacturer part # 180074
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 10mm²
Misc Attribute 180074
RoHS-compliant Yes
Size M8
Support sleeve Yes
Temperature range -60 - +105°C
Thread Size M8
Type Ring terminal
