Cimco 180056 Ring Terminal 6mm² 8.4mm Hole Partially Insulated Yellow

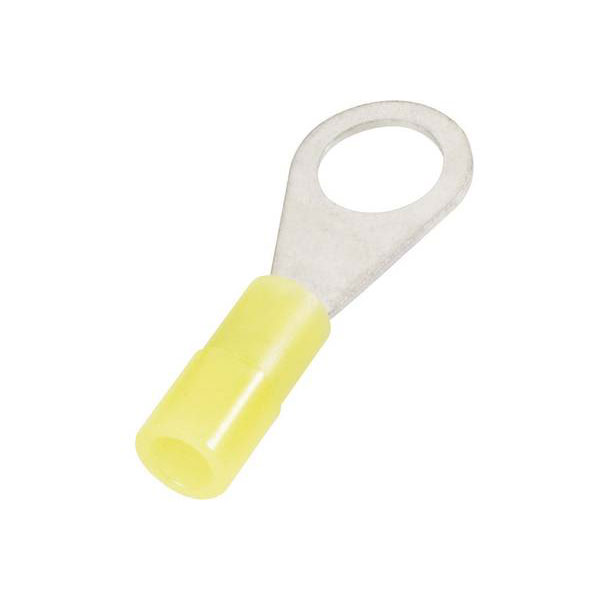

Image Representative of Range

Cimco 180056 Ring Terminal 6mm² 8.4mm Hole Partially Insulated Yellow

Cimco
Standard range
Order Code:

11-5901

Brand: Cimco MPN: 180056 EAN-13: 2050001250650
Qty Unit Price (Ex VAT)
1+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,158 in stock, despatched in 4 working days

The Cimco 180056 is a partially insulated, yellow ring terminal designed for a cross section up to 6 mm² with an 8.4 mm hole diameter. This solder-free crimp connector is ideal for automotive and car applications. It ensures secure, electrical connections in various installations.
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 8.4mm
Insulation material Polyamide
Insulation type Partially insulated
Manufacturer part # 180056
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 6mm²
Min. cross section 4mm²
Misc Attribute 180056
RoHS-compliant Yes
Size M8
Support sleeve Yes
Temperature range -60 - +105°C
Thread Size M8
Type Ring terminal
