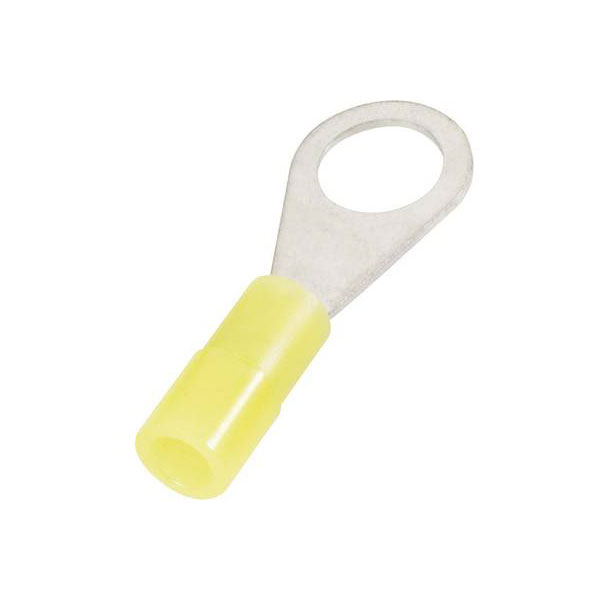

Cimco 180054 Ring Terminal 6mm² 6.5mm Hole Partially Insulated Yellow

The Cimco 180054 ring terminal is a partially insulated, yellow automotive crimp terminal with a maximum cross-section of 6 mm² and a hole diameter of 6.5 mm. This solder-free connector is designed for reliability in electrical connections, particularly in automotive applications. It is commonly used for creating secure and efficient crimped connections in cars and other vehicles.

Colour	Yellow
Insulated	Partially insulated
Stud Size	6.5mm
Maximum Wire Size (mm2)	6mm²
Contact Material	Cathode copper, tin plated
Cross Section	4 - 6mm²
Cross-section range	4 - 6mm²
Hole Ø	6.5mm
Material (details)	Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section	6mm²
Maximimum Wire Gauge (AWG)	10
Min. cross section	4mm²
Product Type	Ring Terminal
Size	M6
Support sleeve	Yes
Temperature Range	-60 - +105°C
Thread Size	M6
