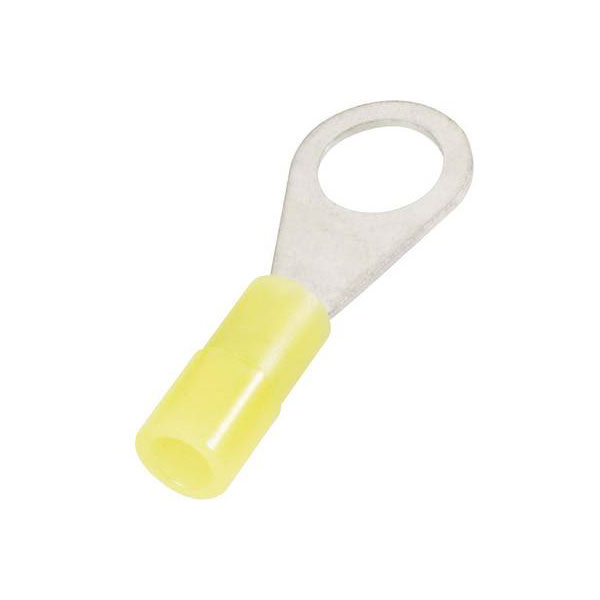

Cimco 180052 Ring Terminal Max 6mm² Yellow Partially Insulated 5.3mm Hole

Image Representative of Range

Cimco 180052 Ring Terminal Max 6mm² Yellow Partially Insulated 5.3mm Hole

Cimco
Order Code:

11-5899

Brand: Cimco MPN: 180052 EAN-13: 2050001250636
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
387 in stock, despatched in 4 working days

The Cimco 180052 ring terminal is a partially insulated, yellow, solder-free connector with a hole diameter of 5.3 mm and a maximum cross-section of 6 mm². It is often used in automotive and car crimping applications due to its durability and reliability. The ring terminal provides a secure connection in electrical installations where a strong and stable attachment is required.
Colour Yellow
Insulated Partially insulated
Contact Material Cathode copper, tin plated
Cross Section 4 - 6mm²
Cross-section range 4 - 6 mm²
Hole Ø 5.3mm
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 6mm²
Min. cross section 4mm²
Size M5
Support sleeve Yes
Temperature Range -60 - +105°C
Thread Size M5
Type Ring terminal
