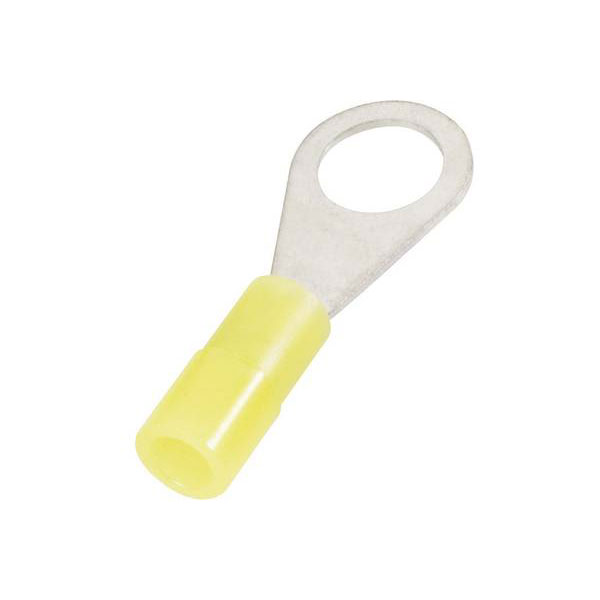

Cimco 180050 Ring Terminal 6mm² 4.3mm Hole Partially Insulated Yellow

Image Representative of Range

Cimco 180050 Ring Terminal 6mm² 4.3mm Hole Partially Insulated Yellow

Cimco
Standard range
Order Code:

11-5898

Brand: Cimco MPN: 180050 EAN-13: 2050001250629
Qty Unit Price (Ex VAT)
1+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
611 in stock, despatched in 4 working days

Cimco's 180050 ring terminal is a partially insulated, yellow crimp connector with a maximum cross-section of 6 mm² and a hole diameter of 4.3 mm. This solder-free connector is suitable for automotive and car applications. It is ideal for creating secure electrical connections in wiring projects.
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 4.3mm
Insulation material Polyamide
Insulation type Partially insulated
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Size M4
Support sleeve Yes
Temperature range -60 - +105°C
Thread Size M4
Type Ring terminal
