Cimco 180029 Ring Terminal 1 mm² 10.5 mm Hole Insulated Red 1 piece

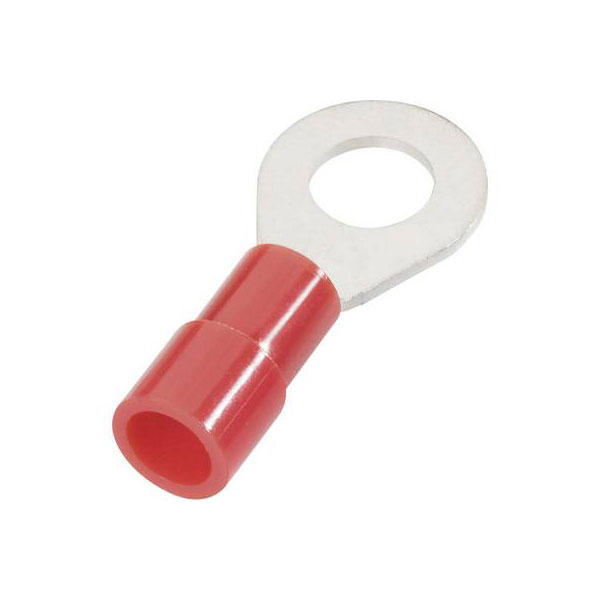

Image Representative of Range

Cimco 180029 Ring Terminal 1 mm² 10.5 mm Hole Insulated Red 1 piece

Cimco
Standard range
Order Code:

11-5891

Brand: Cimco MPN: 180029 EAN-13: 2050001250551
Qty Unit Price (Ex VAT)
1+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
556 in stock, despatched in 4 working days

The Cimco 180029 is a red, partially insulated ring terminal designed for a cross-section of up to 1 mm², with a hole diameter of 10.5 mm. This crimp connector by Cimco is ideal for automotive applications, providing a solder-free connection. It's typically used in car electrics for secure and reliable terminal connections.
Contact material Cathode copper, tin plated
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Hole Ø 10.5mm
Insulation material Polyamide
Insulation type Partially insulated
Manufacturer part # 180029
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 180029
RoHS-compliant Yes
Size M10
Support sleeve Yes
Temperature range -60 - +105°C
Thread Size M10
Type Ring terminal
