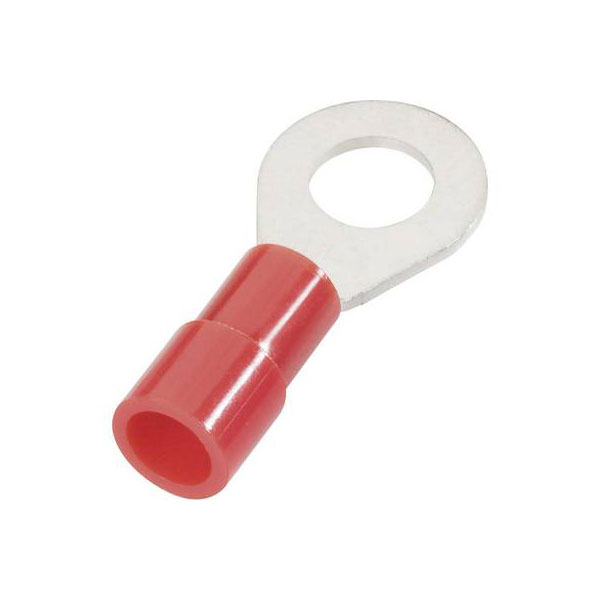

Cimco 180027 Ring Terminal 1mm² 8.4mm Hole Red Partially Insulated

Cimco's 180027 ring terminal features a maximum cross-section of 1 mm² and an 8.4 mm hole diameter, with partial insulation in red. This crimp connector is solder-free, making it ideal for automotive and car applications. It is commonly used where a secure connection is required without the use of heat tools.

Colour	Red
Insulated	Partially insulated
Stud Size	8.4mm
Maximum Wire Size (mm2)	1mm
Contact Material	Cathode copper, tin plated
Cross Section	0.5 - 1mm²
Cross-section range	0.50 - 1mm²
Hole Ø	8.4mm
Material (details)	Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section	1mm²
Maximimum Wire Gauge (AWG)	17
Min. cross section	0.50mm²
Product Type	Ring Terminal
Size	M8
Support sleeve	Yes
Temperature Range	-60 - +105°C
Thread Size	M8
