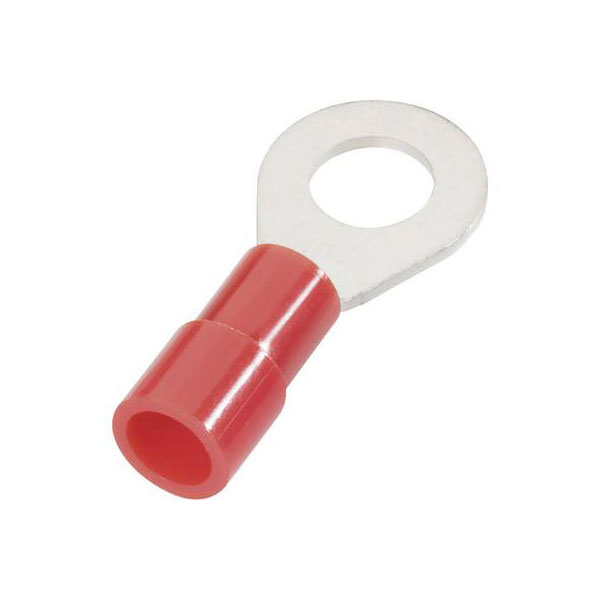

Cimco 180026 Ring Terminal 1mm² 5.3mm Red Part-Insulated 1 piece

Image Representative of Range

Cimco 180026 Ring Terminal 1mm² 5.3mm Red Part-Insulated 1 piece

Cimco
Standard range
Order Code:

11-5888

Brand: Cimco MPN: 180026 EAN-13: 2050001250520
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
905 in stock, despatched in 4 working days

The Cimco 180026 ring terminal is a partially insulated, solder-free connector with a maximum cross-section of 1 mm² and a hole diameter of 5.3 mm, designed for secure and reliable connections. Its red colour aids in easy identification, making it suitable for automotive and car crimp terminal applications. Designed for quick and efficient installation, this versatile crimp connector is ideal for use in various electrical systems.
Contact material Cathode copper, tin plated
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Hole Ø 5.3mm
Insulation material Polyamide
Insulation type Partially insulated
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 1mm²
Min. cross section 0.50mm²
RoHS-compliant Yes
Size M5
Support sleeve Yes
Temperature range -60 - +105°C
Thread Size M5
Type Ring terminal
