Cimco 180024 Ring Terminal 1mm² 4.3mm Hole Partially Insulated Red

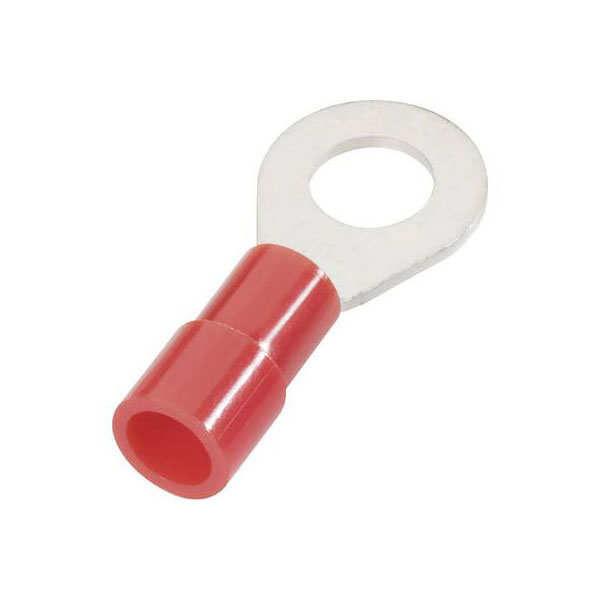

Image Representative of Range

Cimco 180024 Ring Terminal 1mm² 4.3mm Hole Partially Insulated Red

Cimco
Standard range
Order Code:

11-5887

Brand: Cimco MPN: 180024 EAN-13: 2050001250513
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2,117 in stock, despatched in 4 working days

The Cimco 180024 ring terminal is a crimp connector designed for use with a maximum cross section of 1 mm². It features a 4.3 mm hole diameter, is partially insulated, and comes in red. This ring terminal is ideal for automotive and car crimp applications.
Contact material Cathode copper, tin plated
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Hole Ø 4.3mm
Insulation material Polyamide
Insulation type Partially insulated
Manufacturer part # 180024
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 180024
RoHS-compliant Yes
Size M4
Support sleeve Yes
Temperature range -60 - +105°C
Thread Size M4
Type Ring terminal
