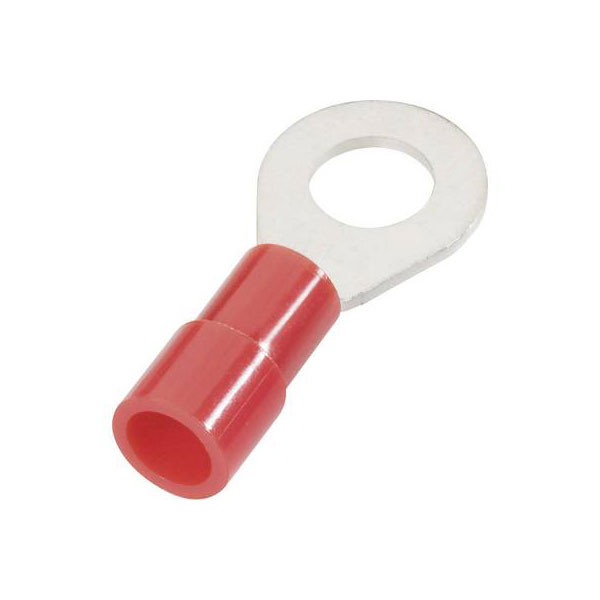

Cimco 180020 Ring Terminal 1mm² 3.2mm Hole Partially Insulated Red

Cimco manufactures the 180020 ring terminal, which features a maximum cross-section of 1 mm² and a hole diameter of 3.2 mm. It is partially insulated and coloured red, suitable for a variety of electrical applications. This crimp connector is frequently used in automotive and car settings for secure and reliable connections.

Colour	Red
Insulated	Partially insulated
Stud Size	3.2mm
Maximum Wire Size (mm2)	1mm
Contact Material	Cathode copper, tin plated
Cross Section	0.5 - 1mm²
Cross-section range	0.50 - 1mm²
Hole Ø	3.2mm
Material (details)	Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section	1mm²
Maximimum Wire Gauge (AWG)	17
Min. cross section	0.50mm²
Product Type	Ring Terminal
Size	M3
Support sleeve	Yes
Temperature Range	-60 - +105°C
Thread Size	M3
