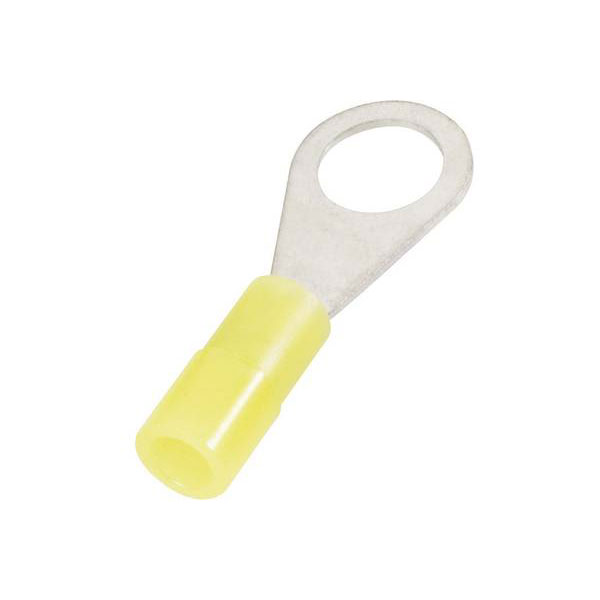

Cimco 180016 Ring Terminal 0.40 mm² 5.3 mm Hole Partially Insulated Yellow

Cimco 180016 Ring Terminal 0.40 mm² 5.3 mm Hole Partially Insulated Yellow

Cimco
Order Code:

11-5885

Brand: Cimco MPN: 180016 EAN-13: 2050001250490

Discontinued


The Cimco 180016 ring terminal, manufactured by Cimco, features a cross section of up to 0.40 mm² and a hole diameter of 5.3 mm, with a partially insulated yellow design. It is a crimp connector ideal for automotive and car applications, specifically useful for creating secure solder-free electrical connections. This terminal is particularly suited for m4, m6, and m8 ring terminal connections.
Colour Yellow
Insulated Partially insulated
Contact Material Cathode copper, tin plated
Cross Section 0.1 - 0.4mm²
Cross-section range 0.10 - 0.40 mm²
Hole Ø 5.3mm
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 0.40mm²
Min. cross section 0.10mm²
Size M5
Support sleeve Yes
Temperature Range -60 - +105°C
Thread Size M5
Type Ring terminal
