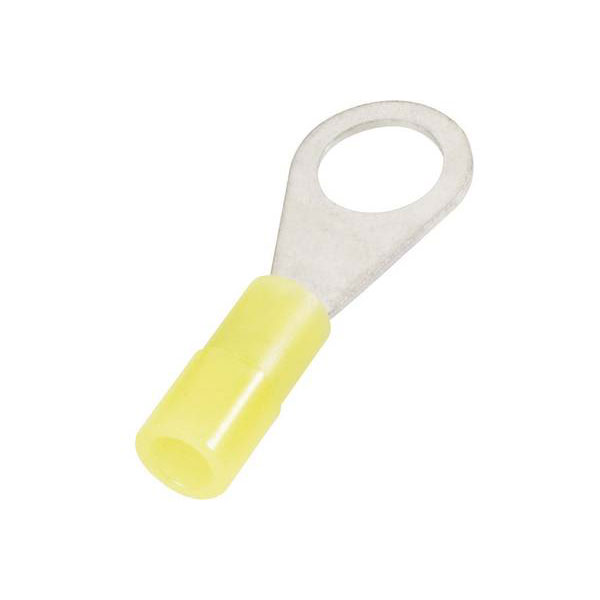

Cimco 180014 Ring Terminal 0.40mm² 4.3mm Hole Partially Insulated Yellow

Image Representative of Range

Cimco 180014 Ring Terminal 0.40mm² 4.3mm Hole Partially Insulated Yellow

Cimco
Order Code:

11-5884

Brand: Cimco MPN: 180014 EAN-13: 2050001250483
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,115 in stock, despatched in 4 working days

The Cimco 180014 ring terminal is a partially insulated, yellow crimp connector with a maximum cross-section of 0.40 mm² and a hole diameter of 4.3 mm. Manufactured by Cimco, this component is suited for various applications such as automotive and car electrical systems, providing reliable, solder-free connections. Its design makes it ideal for use as an M4 ring terminal in automotive crimp terminal configurations.
Colour Yellow
Insulated Partially insulated
Contact Material Cathode copper, tin plated
Cross Section 0.1 - 0.4mm²
Cross-section range 0.10 - 0.40 mm²
Hole Ø 4.3mm
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 0.40mm²
Min. cross section 0.10mm²
Size M4
Support sleeve Yes
Temperature Range -60 - +105°C
Thread Size M4
Type Ring terminal
