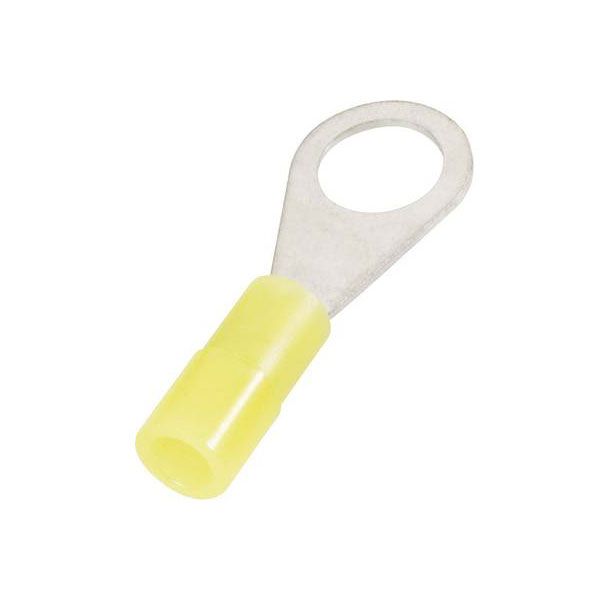

Cimco 180010 Ring Terminal 0.40 mm² 3.2 mm Yellow Partially Insulated

Image Representative of Range

Cimco 180010 Ring Terminal 0.40 mm² 3.2 mm Yellow Partially Insulated

Cimco
Standard range
Order Code:

11-5883

Brand: Cimco MPN: 180010 EAN-13: 2050001250476
Qty Unit Price (Ex VAT)
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
256 in stock, despatched in 4 working days

The Cimco 180010 ring terminal is a partially insulated, yellow crimp connector designed for a maximum cross section of 0.40 mm² with a hole diameter of 3.2 mm. Manufactured by Cimco, it provides a reliable solder-free connection, commonly used in automotive and car crimping applications. The terminal is ideal for secure electrical connections in various electronic installations.
Contact material Cathode copper, tin plated
Cross section 0.1 - 0.4mm²
Cross-section range 0.10 - 0.40 mm²
Factory colour Yellow
Hole Ø 3.2mm
Insulation material Polyamide
Insulation type Partially insulated
Manufacturer part # 180010
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 0.40mm²
Min. cross section 0.10mm²
Misc Attribute 180010
RoHS-compliant Yes
Size M3
Support sleeve Yes
Temperature range -60 - +105°C
Thread Size M3
Type Ring terminal
