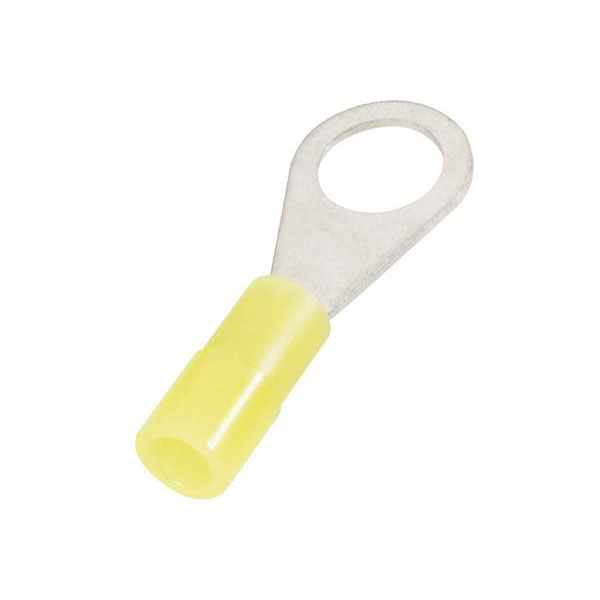

Cimco 180008 Ring Terminal 0.40 mm² 2.3 mm Hole Yellow Insulated

Image Representative of Range

Cimco 180008 Ring Terminal 0.40 mm² 2.3 mm Hole Yellow Insulated

Cimco
Order Code:

11-5882

Brand: Cimco MPN: 180008 EAN-13: 2050001250469
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
177 in stock, despatched in 4 working days

The Cimco 180008 is a partially insulated yellow ring terminal with a maximum cross section of 0.40 mm² and a hole diameter of 2.3 mm. This crimp connector by Cimco is solder-free and typically used in automotive applications. Its design facilitates secure connections in car electrical circuits.
Colour Yellow
Insulated Partially insulated
Contact Material Cathode copper, tin plated
Cross Section 0.1 - 0.4mm²
Cross-section range 0.10 - 0.40 mm²
Hole Ø 2.3mm
Material (details) Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide, nylon)
max. cross section 0.40mm²
Min. cross section 0.10mm²
Size M2
Support sleeve Yes
Temperature Range -60 - +105°C
Thread Size M2
Type Ring terminal
