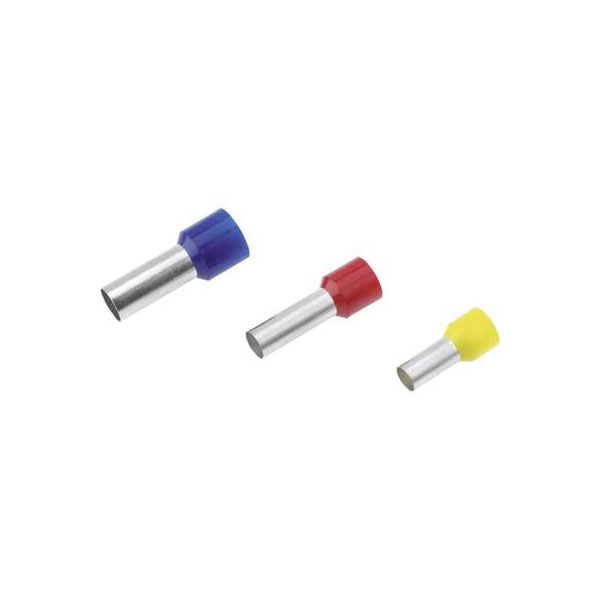

The Cimco 18 2364 ferrule is a partially insulated piece designed to accommodate wires up to 25 mm². It features a yellow insulation for easy identification and comes in a pack of 50. These ferrules are typically used in electrical applications to ensure secure and reliable wire connections.
Insulation |
Polypropylene |
Type |
Ferrule |
AWG max. |
4 |
Contact material |
CU-ETP |
Country colour code |
DIN |
Cross section per core |
25mm² |
Cross-section x Length |
25 mm² x 22 mm |
Factory colour |
Yellow |
Insulation material |
PP |
Insulation type |
Partially insulated |
Length |
36mm |
Manufacturer part # |
18 2364 |
Material (details) |
Cu-ETP according to DIN EN 13600 |
Misc Attribute |
182364 |
RoHS-compliant |
Yes |
Sleeve length |
22mm |
Temperature range |
-35 - +105°C |
