Chauvin Arnoux P01196802 ASYC IV Multimeter 100000 count IP67 CAT IV 600 V

Chauvin Arnoux
Extended range
Order Code:

02-2958

Brand: Chauvin Arnoux MPN: P01196802
Qty Unit Price (Ex VAT)
1+ £612.05
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 05/05/2025

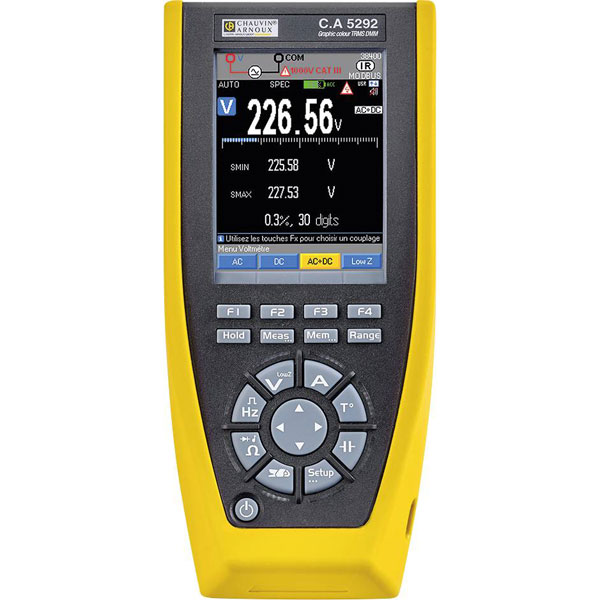

The Chauvin Arnoux C.A 5292 is a digital multimeter featuring a graphics display and a capacity of up to 100,000 counts. It is designed for CAT III 1000 V and CAT IV 600 V environments, making it suitable for industrial and electrical applications. This multi-purpose device can be used for voltage, current, and frequency measurements.
A AC reading range (min.) 1000µA
A DC reading range (max.) 20A
Amperage reading range AC (max.) 20A
Amperage reading range DC (min.) 1000µA
Basic accuracy 0.3%
Calibrated to Manufacturer's standards (no certificate)
Dim (L x W x H) 47.1 x 196 x 90 mm
Display Digital
Display (counts) 100000
Frequency reading range 10 Hz - 5MHz
Height 90mm
Interfaces USB
Length 47.1mm
Measurement type (details) True RMS
Misc Attribute C.A 5292
Power supply (details) 100-240 V/50 - 60 Hz
Reading frequency 100kHz
Reading range - capacity 1 nF -10mF
Reading range - resistance 100 Ω - 100 MΩ
Temperature -200 °C - +1200°C
Type Handheld multimeter
V AC reading range (max.) 1000V
V AC reading range (min.) 100mV
Voltage DC reading range (max.) 1000V
Voltage reading range DC (min.) 100mV
Weight 570g
Width 196mm
