Chauvin Arnoux P01120631 AmpFlex Clamp meter adapter 0.08-3000 A range

Chauvin Arnoux
Order Code:

02-2907

Brand: Chauvin Arnoux MPN: P01120631
Qty Was Unit Price (Ex VAT)
1+ £437.97 £430.96
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 09/05/2026

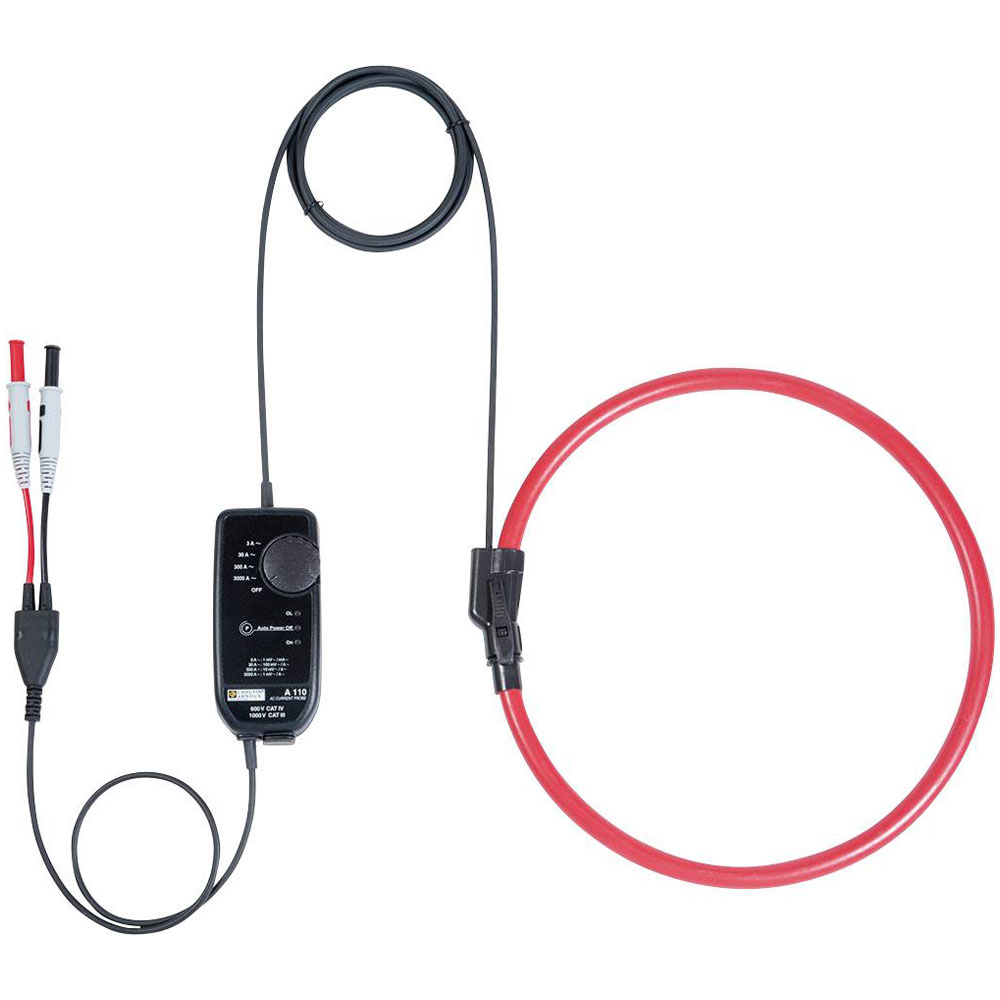

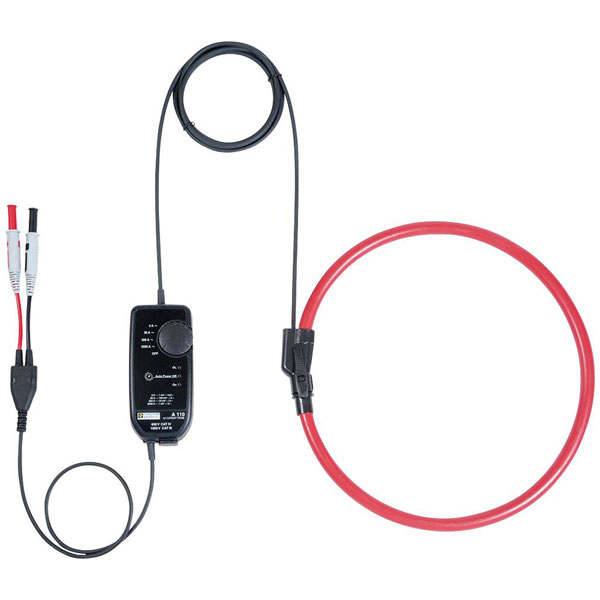

The Chauvin Arnoux A 110-80 clamp meter adapter offers a flexible current measurement solution with an A/AC reading range of 0.08 to 3000 A. Designed with a Rogowski coil, it functions effectively as a current clamp adapter for precise current conversion. Ideal for electrical monitoring and diagnostics, it serves professionals in assessing dynamic and complex systems.
Type Clamp meter adapter
Maximum AC Current Measurement 3000A
A AC reading range (min.) 0.08A
Amperage reading range AC (max.) 3000A
Calibrated to Manufacturer's standards (no certificate)
Category CAT IV 1000 V
Current reading AC
Dimensions (L x W x H) 36 x 120 x 58 mm
Height 58mm
Length 36mm
Max. frequency 20kHz
Opening range of current clamps 250mm
Power supply (details) Via AC-voltage input of the measuring device.
Type B 4 mm jack
Width 120mm
