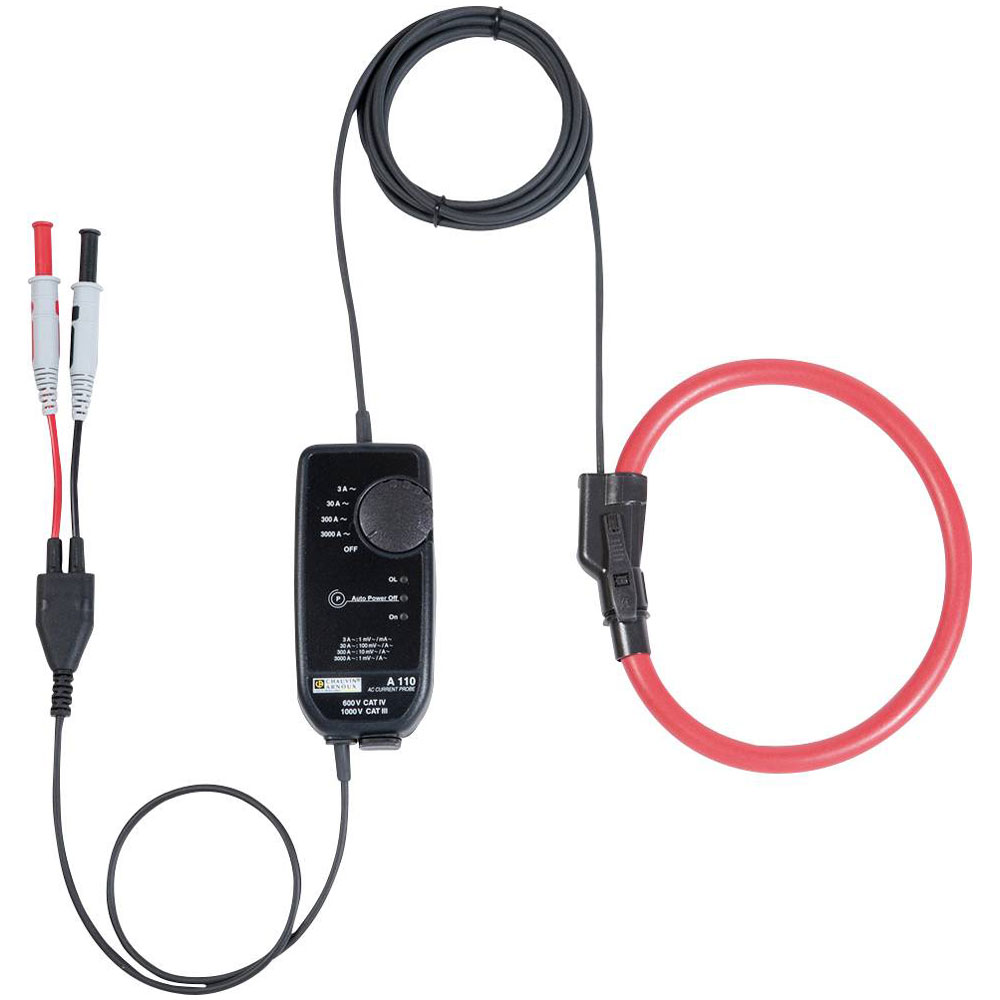

Chauvin Arnoux P01120630 AmpFlex Clamp meter adapter 0.08-3000 A AC range

The Chauvin Arnoux A 110-45 clamp meter adapter, also known as a Rogowski coil or current loop, measures alternating current within a range of 0.08 to 3000 amperes, offering flexibility and adaptability for diverse electrical applications. This current converter is useful in environments where accurate current measurement is essential, such as electrical maintenance or circuit testing. Its flexible design allows it to encircle conductors of various sizes easily, making it suitable for a wide variety of electrical systems

Type	Clamp meter adapter
A AC reading range (min.)	0.08A
Amperage reading range AC (max.)	3000A
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC
Dim	(L x W x H) 36 x 120 x 58 mm
Height	58mm
Length	36mm
Max. frequency	20kHz
Opening range of current clamps	140mm
Power supply (details)	Via AC-voltage input of the measuring device.
Reading category	CAT IV 1000 V
Type B	4 mm jack
Weight	360g
Width	120mm
