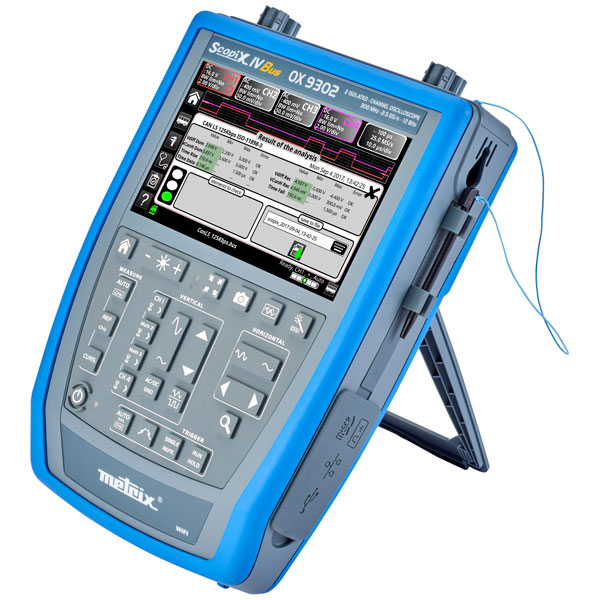

Chauvin Arnoux OX9302-BUS Scopix IV,Oscilloscope, 2 x 300Mhz BUS

Used to perform the electrical measurements needed to assess the integrity of the fieldbuses, or in other words the operation of the physical layer, electrical specifications, synchronization, etc.Featuring four steps for quick simple diagnosis.

• 7" WGA colour LCD screen (resolution 800 X 480) – Adjustment of brightness and contrast, Bandwidth 70 MHz / 100 MHz – 20 MHz bandwidth limiter, Bandwidth 25 MHz, Impedance 2 channels, common chassis-earths - 1 MΩ / 18 pF and External Trig channel, maximum sampling rate One-shot = 250 MS/s (2 channels), 500 MS/s (1 channel) 0 MS/s, repetitive = 10 Gé/s

No. of Channels	2
Bandwidth	300MHz
Type	Oscilloscope
Manufacturers Warranty	1 Year
Screen Size	800 x 480 p
