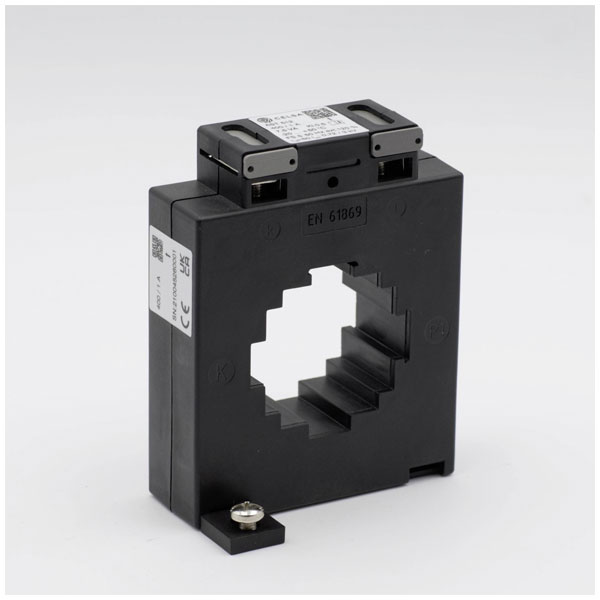

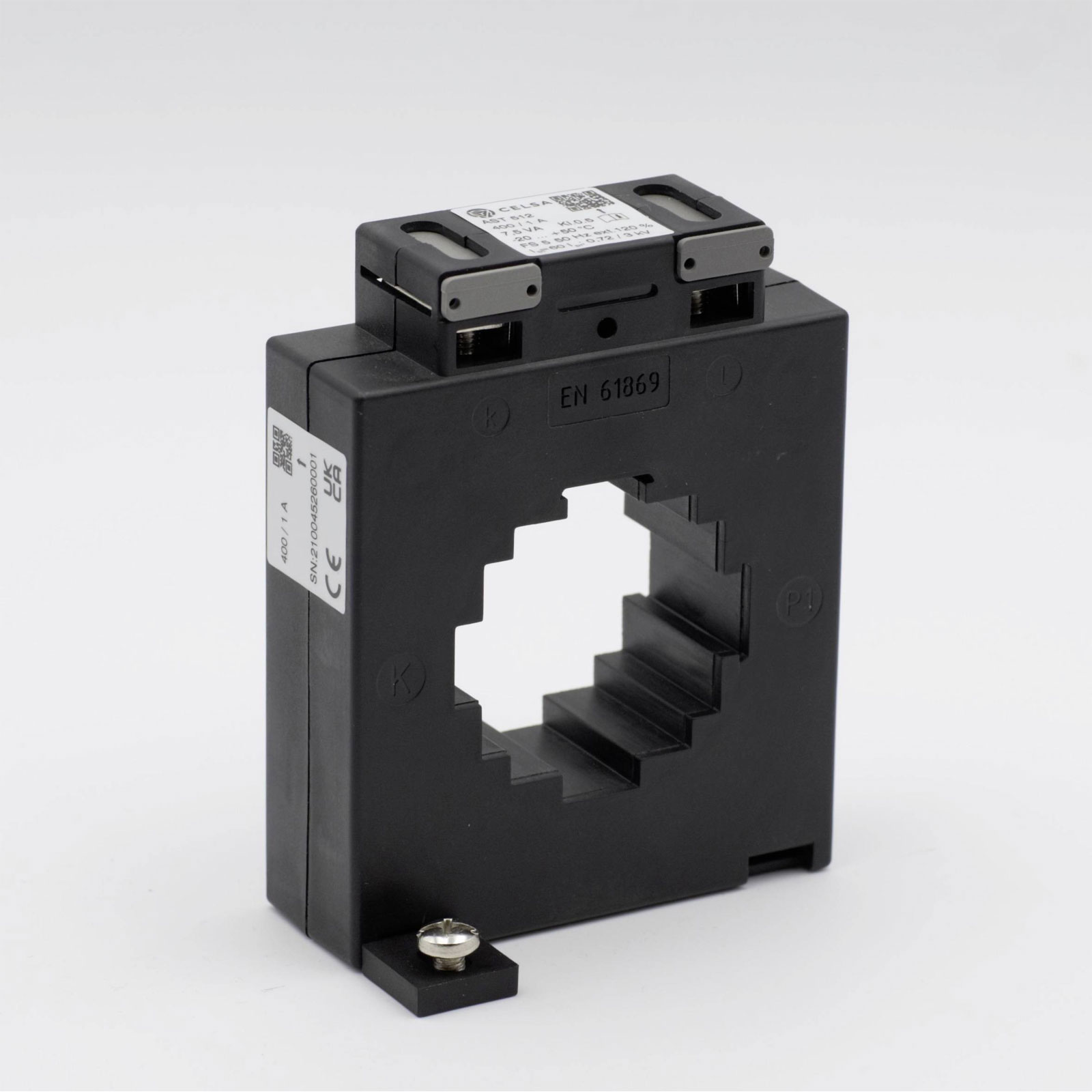

Celsa 70030-1137-0250 AST 512 Current Transformer, 200/5A, 2.5VA, Compact

The current transformer attachment, model Celsa 70030-1137-0250, is manufactured by Celsa and features a primary current of 200 A and a secondary current of 5 A. It is designed with a line feed-through dimension of 51 x 51 mm and a diameter of 42 mm, suitable for precise current measurement and monitoring applications. This device is typically used in electrical systems requiring accurate current conversion and monitoring, such as in industrial automation or energy management systems

Type	Current transformer attachment
Primary Current	200A
Accuracy Class	1
Calibrated	FALSE
Height opening	13-51mm
Line feed-through (H x W)	51 x 51 mm
Line feed-through (H)	51mm
Line feed-through (W)	51mm
Line feed-through diameter	42mm
Misc Attribute	AST 512 200/5A 2.5VA Kl. 1
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	42mm
Overcurrent limiting factor	FS 5
Rated primary current	200A
Rated secondary apparent power	25VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	13-51mm
With contact protection	TRUE
With copper rail	FALSE
