Celsa 70030-1042 AST 315 Transformer 100/5A, Compact, Cost-effective

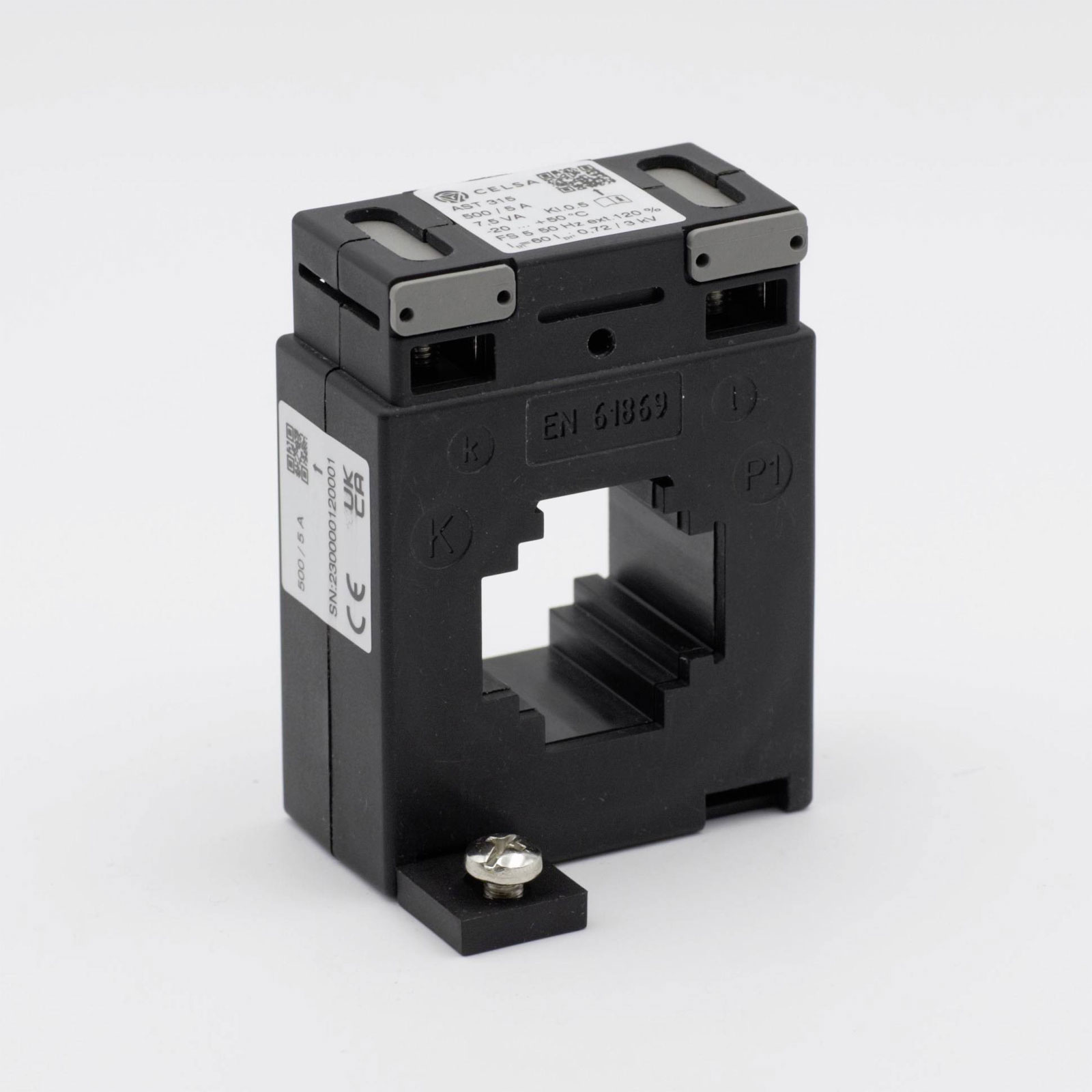

Celsa 70030-1042 1 pc(s) is a current transformer attachment designed for a primary current of 100 A and a secondary current of 5 A. This device features a line feed-through of 33 x 33 mm with a diameter of 28 mm, primarily used in applications requiring accurate current measurement and monitoring. Typical applications include integrating it into existing electrical systems for monitoring purposes, where it acts as a reliable current converter.

Type	Current transformer attachment
Primary Current	100A
Accuracy Class	1
Calibrated	FALSE
Height opening	16-33mm
Line feed-through (H x W)	33 x 33 mm
Line feed-through (H)	33mm
Line feed-through (W)	33mm
Line feed-through diameter	28mm
Misc Attribute	AST 315 100/5A 2.5VA Kl. 1
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	28mm
Overcurrent limiting factor	FS 5
Rated primary current	100A
Rated secondary apparent power	25VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	16-33mm
With contact protection	TRUE
With copper rail	FALSE
