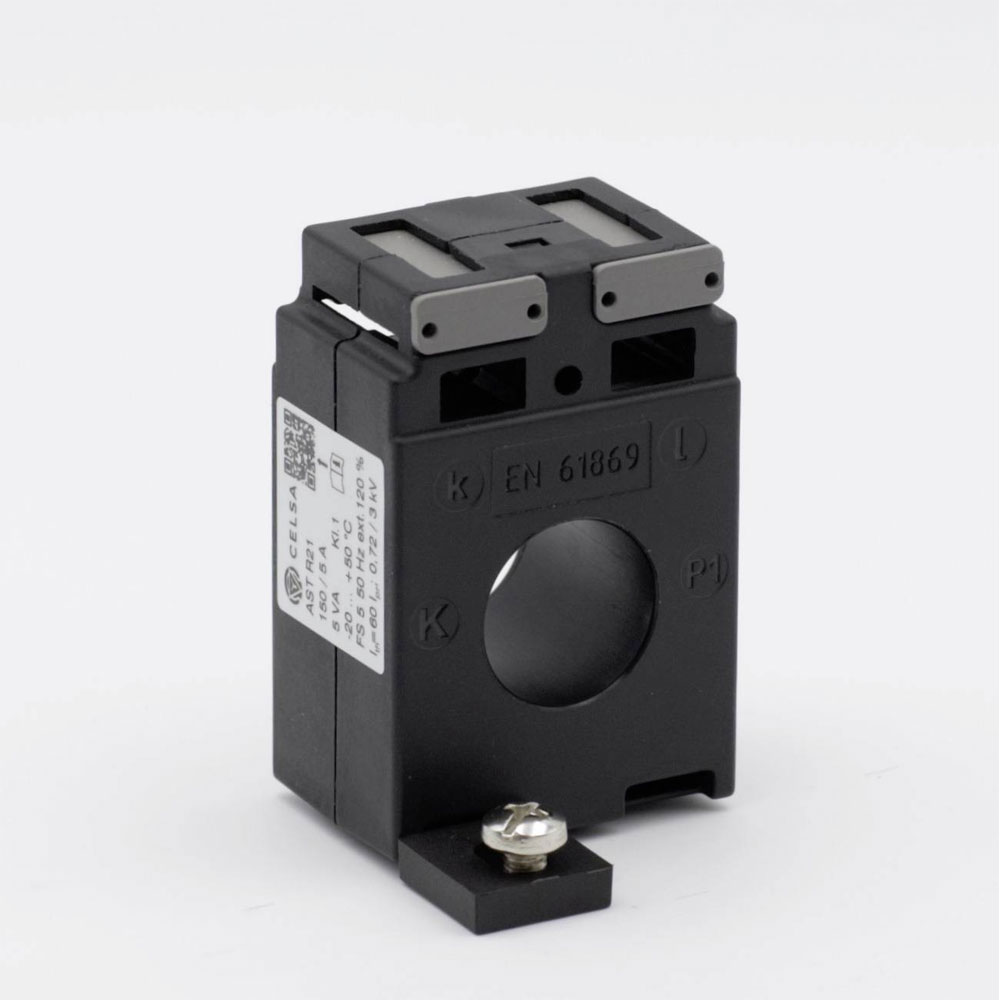

Celsa 70030-1032 AST R21 Current Transformer 150/5A 21mm 1pc Compact

The Celsa AST R21 150/5A 5VA Kl. 1 is a current transformer attachment designed for converting primary currents up to 150 A with a secondary output of 5 A. Featuring a Rogowski coil and a line feed-through diameter of 21 mm, it is typically used in AC conversion applications and current loop systems. This reliable device is ideal for electrical monitoring and power management tasks, offering precise current measurements.

Type	Current transformer attachment
Primary Current	150A
Accuracy Class	1
Calibrated	FALSE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	21mm
Misc Attribute	AST R21 150/5A 5VA Kl. 1
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	21mm
Overcurrent limiting factor	FS 5
Rated primary current	150A
Rated secondary apparent power	5VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
