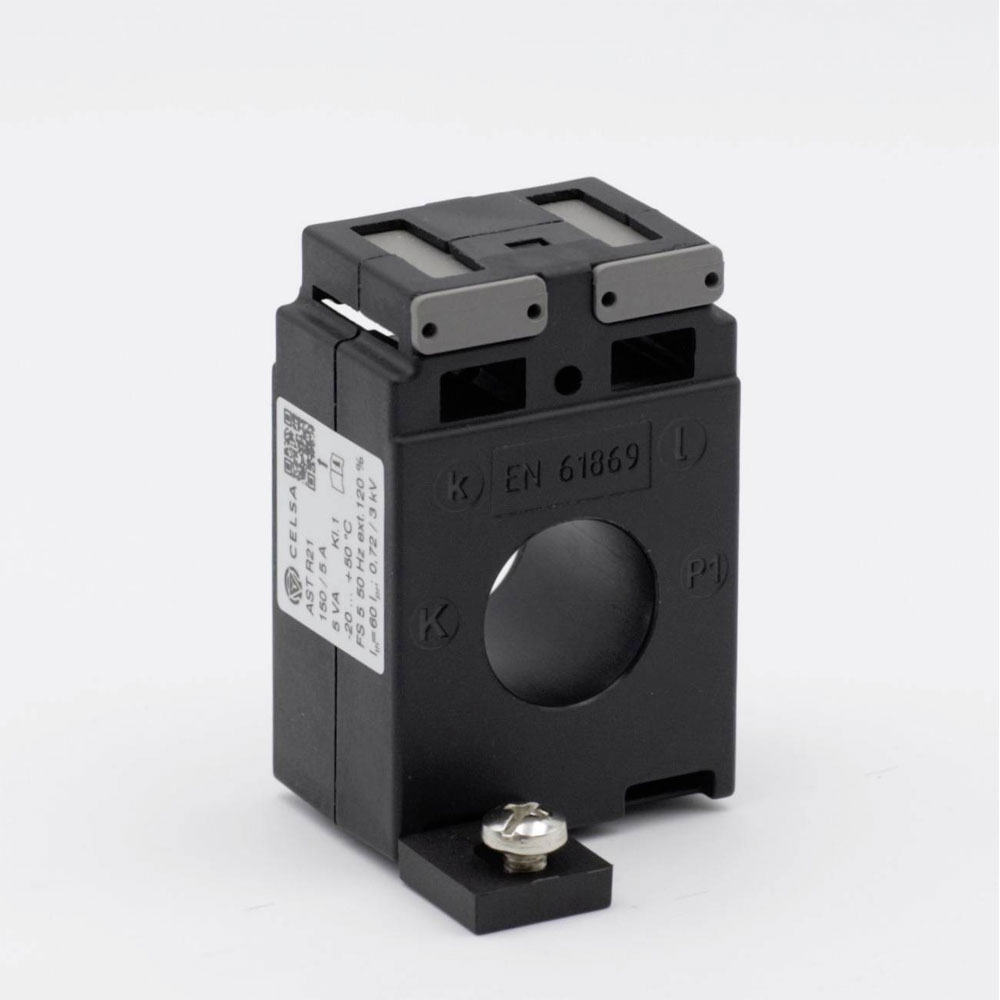

Celsa 70017-4224 EASTER21 Transformer 100/1A Compact PTB-Approved

The Celsa EASTR21 100/1A 1VA Kl. 0.5 current transformer attachment is manufactured by Celsa and is designed for primary current of 100 A and secondary current of 1 A. This current converter is equipped with a 21 mm line feed-through diameter, making it suitable for applications involving current measurement and monitoring. The Celsa 70017-4224 is typically used in electrical systems for precise current conversion.

Type	Current transformer attachment
Primary Current	100A
Accuracy Class	0.5
Calibrated	TRUE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	21mm
Misc Attribute	EASTR21 100/1A 1VA Kl. 0.5
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	21mm
Overcurrent limiting factor	FS 5
Rated primary current	100A
Rated secondary apparent power	1VA
Rated secondary current	1A
Secondary connection	Screw connection
Secondary current	1A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
