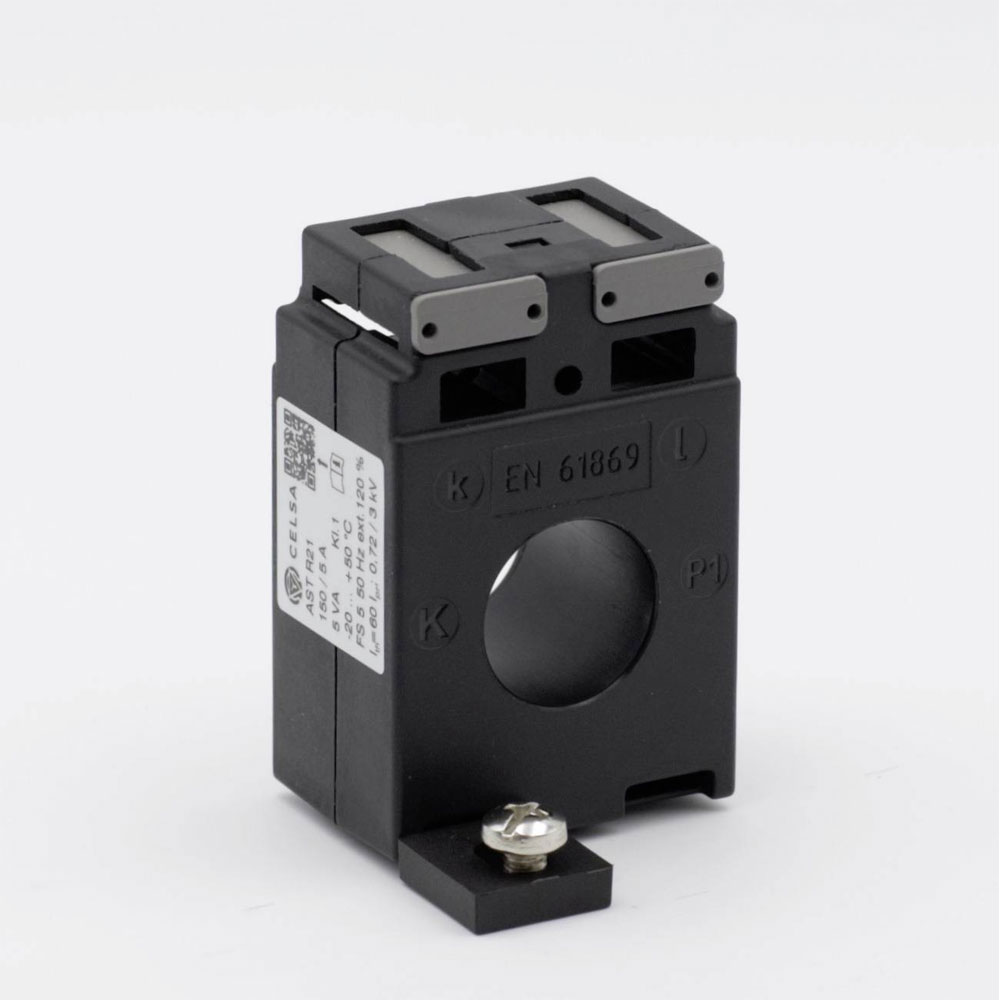

Celsa 70017-3897 EASTR21 Current Transformer 125/5A 2VA Kl.0.5 21mm

The Celsa EASTR21 125/5A 2VA Kl. 0.5 is a current transformer attachment that converts a primary current of 125 A to a secondary current of 5 A with a line feed-through diameter of 21 mm. Manufactured by Celsa, this device is ideal for accurate current measurement in electrical systems, ensuring precise monitoring and control. Typical applications include integration into power distribution systems and usage in electrical panels for current conversion tasks.

Type	Current transformer attachment
Primary Current	125A
Accuracy Class	0.5
Calibrated	TRUE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	21mm
Misc Attribute	EASTR21 125/5A 2VA Kl. 0.5
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	21mm
Overcurrent limiting factor	FS 5
Rated primary current	125A
Rated secondary apparent power	2VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
