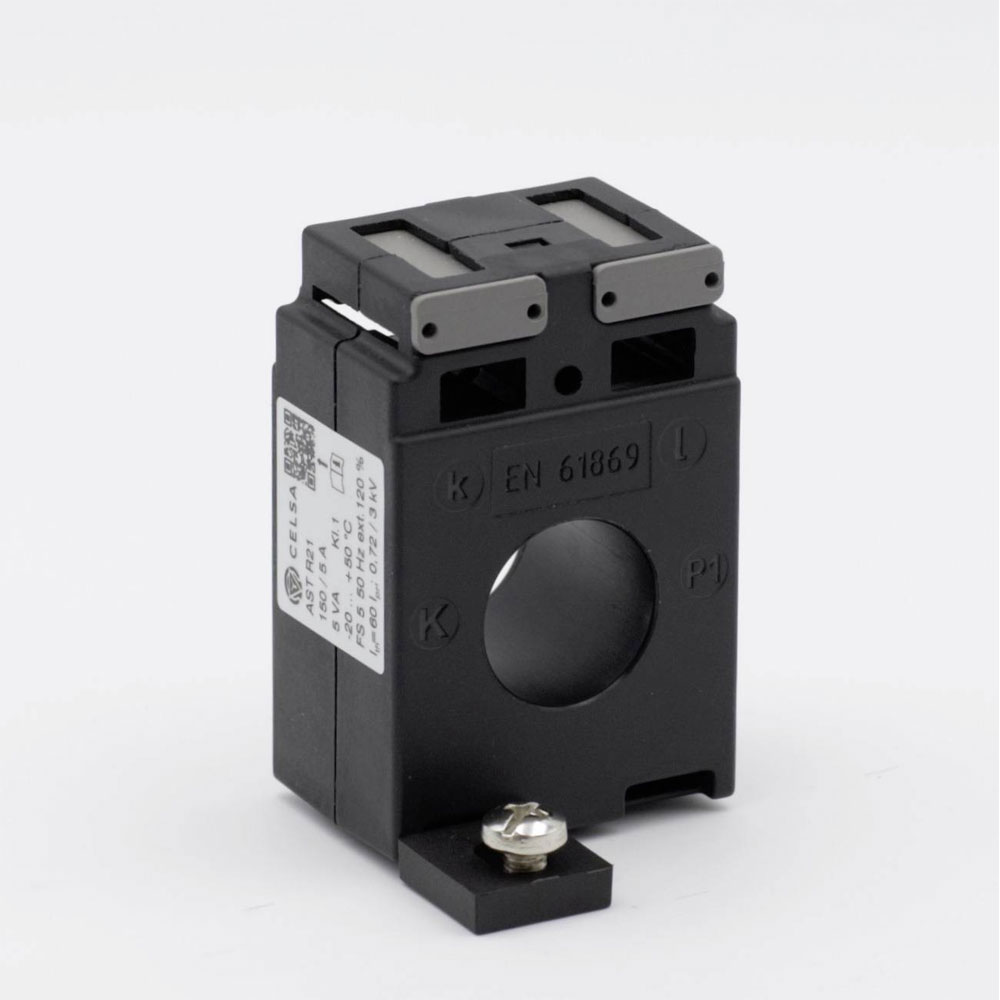

Celsa 70017-3848-0100 EASTR21 Transformer 100/5A 1VA Ø21mm Compacts

The Celsa EASTR21 100/5A 1VA Kl. 0,5 current transformer attachment, with a primary current of 100 A and a secondary current of 5 A, features a line feed-through diameter of 21 mm. This Celsa device, model number 70017-3848-0100, is ideal for monitoring and measuring alternating current in electrical systems. It is typically used in applications that require precise current conversion for protection and metering purposes

Type	Current transformer attachment
Primary Current	100A
Accuracy Class	0.5
Calibrated	TRUE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	21mm
Misc Attribute	EASTR21 100/5A 1VA Kl. 0,5
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	21mm
Overcurrent limiting factor	FS 5
Rated primary current	100A
Rated secondary apparent power	1VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
