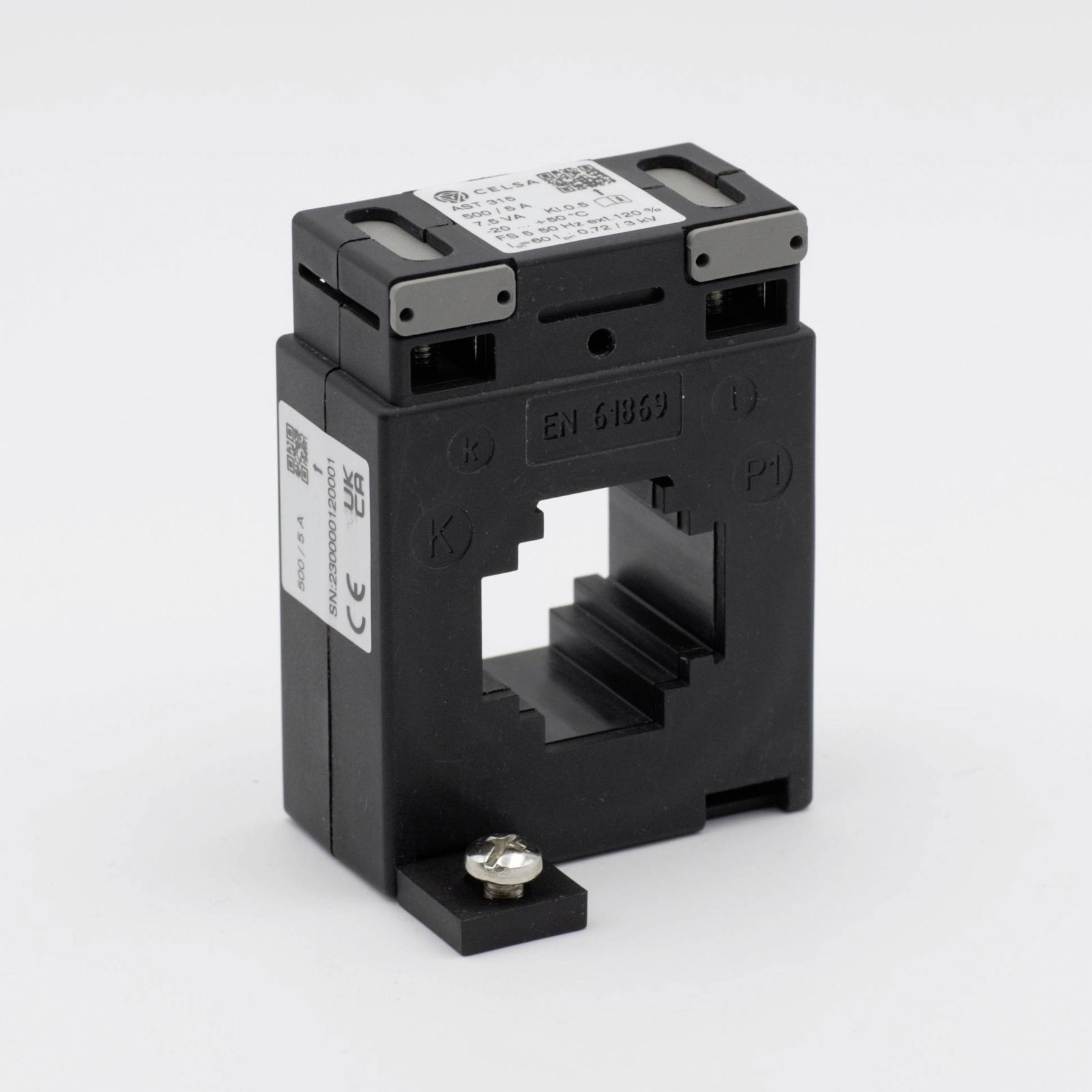

Celsa 70017-1764-0500 EAST315 Current Transformer 600/5A Kl. 0.5 PTB Approved

Celsa's EAST315 600/5A 5VA Kl. 0.5 current transformer is designed for precise current monitoring, with a primary current of 600 A and secondary current of 5 A. It features a 33 x 33 mm line feed-through with a 28 mm diameter, making it ideal for installation in small spaces. The transformer is commonly used in electrical systems for converting and measuring alternating currents efficiently.

Type	Current transformer attachment
Primary Current	600A
Accuracy Class	0.5
Calibrated	TRUE
Height opening	16-33mm
Line feed-through (H x W)	33 x 33 mm
Line feed-through (H)	33mm
Line feed-through (W)	33mm
Line feed-through diameter	28mm
Misc Attribute	EAST315 600/5A 5VA Kl. 0.5
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	28mm
Overcurrent limiting factor	FS 5
Rated primary current	600A
Rated secondary apparent power	5VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	16-33mm
With contact protection	TRUE
With copper rail	FALSE
