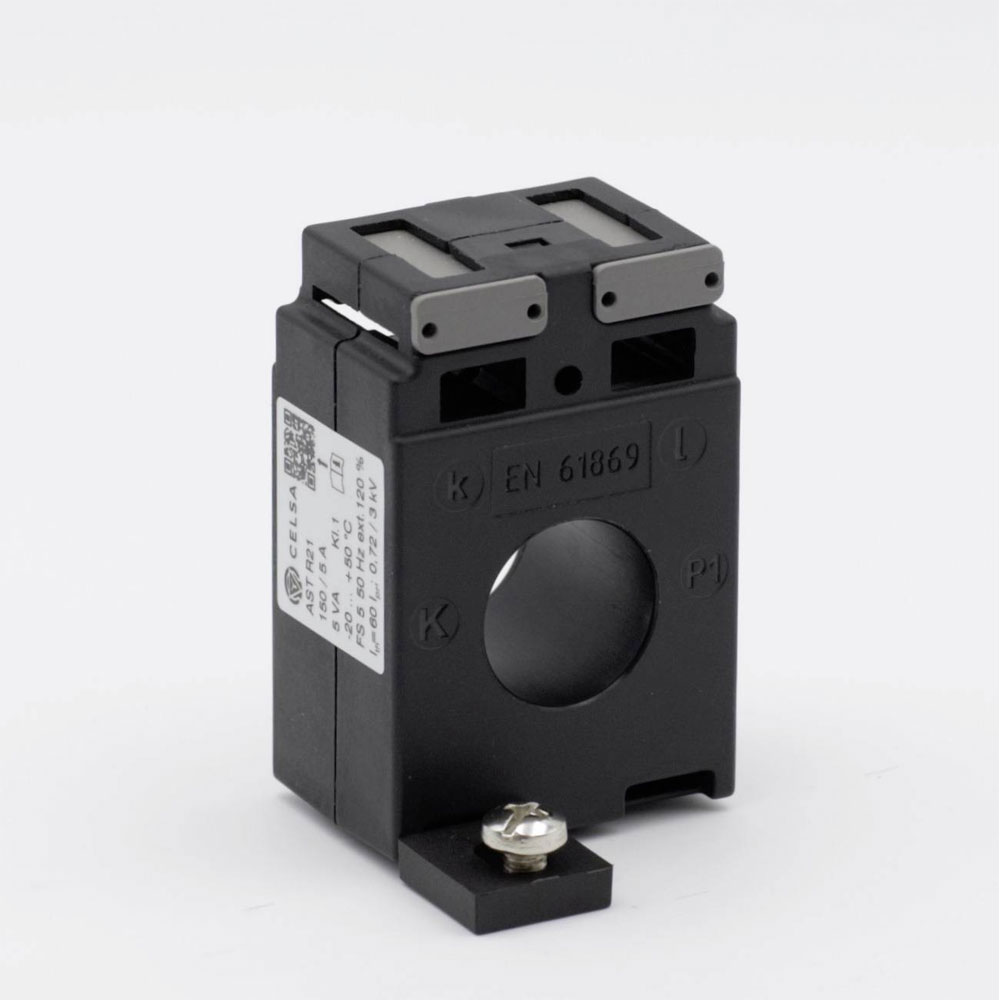

Celsa 70017-1749 EASTR21 Current Transformer 250/5A 21mm 1 pc(s)

Celsa manufactures the EASTR21 250/5A 5VA Kl. 0.5 current transformer, designed for converting a primary current of 250 A to a secondary current of 5 A. Featuring a line feed-through diameter of 21 mm, this component is suitable for integration into current loops and AC conversion systems. Typical applications include monitoring and measuring electrical currents in industrial settings.

Type	Current transformer attachment
Primary Current	250A
Accuracy Class	0.5
Calibrated	TRUE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	21mm
Misc Attribute	EASTR21 250/5A 5VA Kl. 0.5
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	21mm
Overcurrent limiting factor	FS 5
Rated primary current	250A
Rated secondary apparent power	5VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
