Celsa 70006-1317 TQ 42 Cable Transformer, 400A/1A, 42mm, Easy Install

Celsa
Standard range
Order Code:

08-7613

Brand: Celsa MPN: 70006-1317 EAN-13: 9503715127952
Qty Unit Price (Ex VAT)
1+ £79.60
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

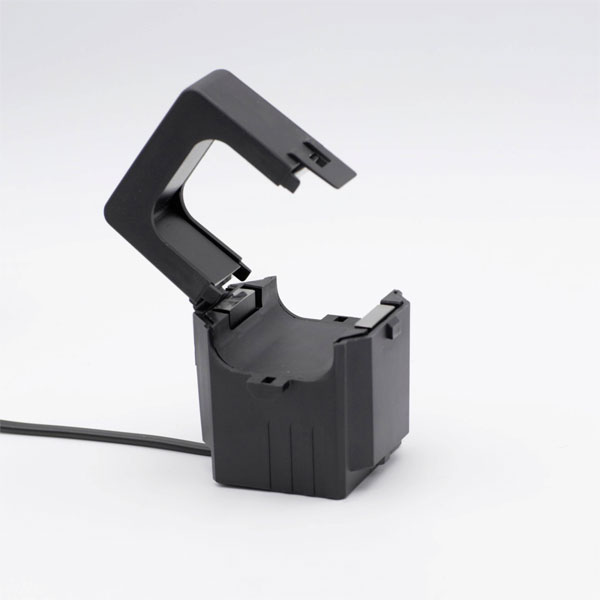

Celsa's TQ 42 400/1A 0.5VA Kl. 0.5 cable current transformer efficiently converts a primary current of 400 A to a secondary current of 1 A. With a line feed-through diameter of 42 mm, it's ideal for precise measurement in electrical applications. This robust device, identified as Celsa 70006-1317, is commonly used for monitoring current in power distribution systems.
Type Cable current transformer
Accuracy class 0.5
Calibrated FALSE
Height opening 0-0mm
Line feed-through (H) 0mm
Line feed-through (W) 0mm
Line feed-through diameter 42mm
Misc Attribute TQ 42 400/1A 0.5VA Kl. 0.5
Model Cable rebuilding current converter
Number of primary inputs 1
Opening diameter 42mm
Overcurrent limiting factor FS 5
Primary current 400A
Rated primary current 400A
Rated secondary apparent power 5VA
Rated secondary current 1A
Secondary connection Cable
Secondary current 1A
Snap mounting FALSE
Width opening 0-0mm
With contact protection TRUE
With copper rail FALSE
