Celsa 70006-1050 TQ 27 Current Transformer 250/5A, 28mm, Compact Design

Celsa
Standard range
Order Code:

08-7606

Brand: Celsa MPN: 70006-1050 EAN-13: 9503715848352
Qty Unit Price (Ex VAT)
1+ £64.50
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

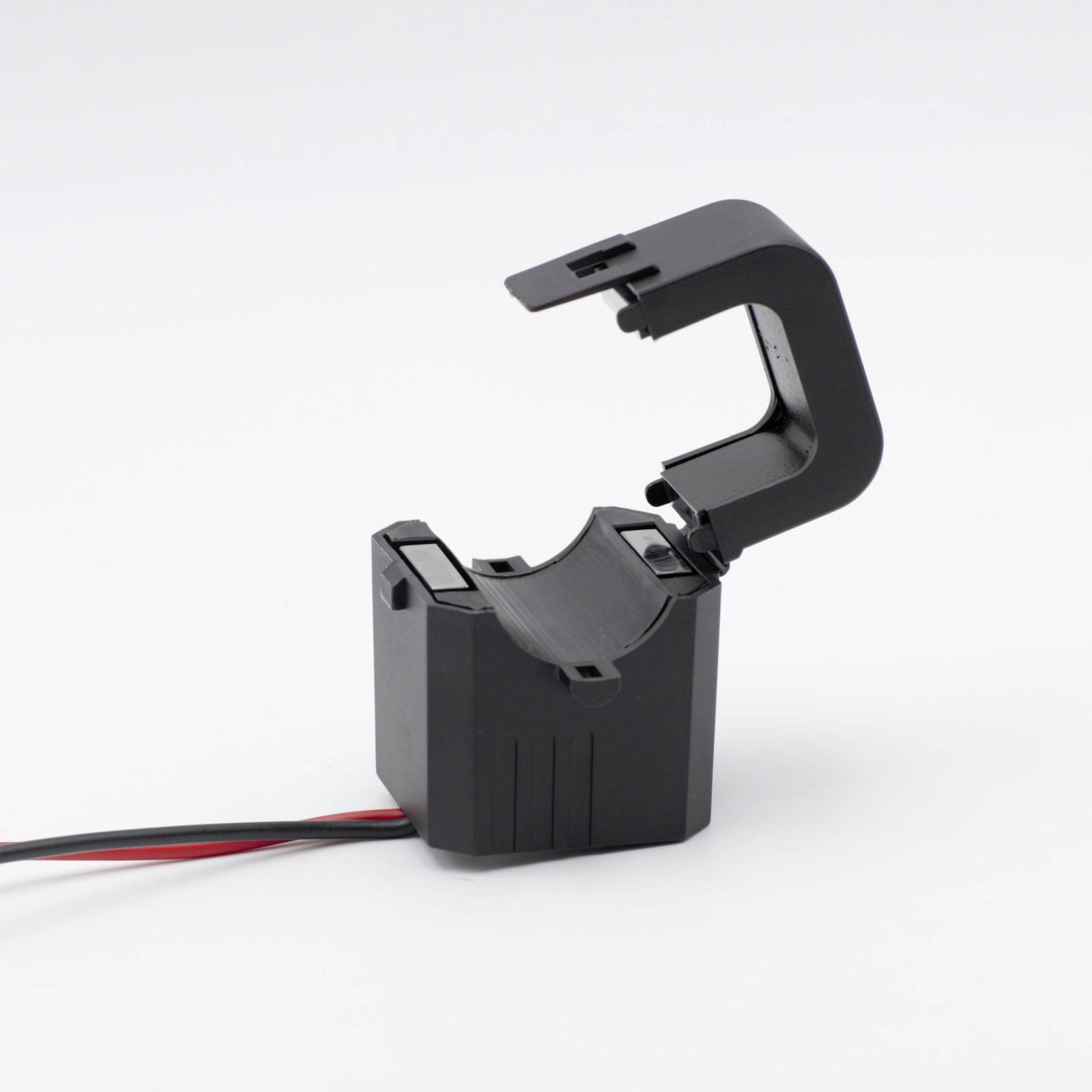

Celsa's TQ 27 250/5A 1VA Kl. 1 Cable Current Transformer is designed with a primary current of 250 A and a secondary current of 5 A. It features a line feed-through diameter of 28 mm and is suitable for use in monitoring electrical systems. This model, Celsa 70006-1050, is ideal for applications requiring precision current conversion in AC circuits.
Type Cable current transformer
Accuracy class 1
Calibrated FALSE
Height opening 0-0mm
Line feed-through (H) 0mm
Line feed-through (W) 0mm
Line feed-through diameter 28mm
Misc Attribute TQ 27 250/5A 1VA Kl. 1
Model Cable rebuilding current converter
Number of primary inputs 1
Opening diameter 28mm
Overcurrent limiting factor FS 5
Primary current 250A
Rated primary current 250A
Rated secondary apparent power 1VA
Rated secondary current 5A
Secondary connection Cable
Secondary current 5A
Snap mounting FALSE
Width opening 0-0mm
With contact protection TRUE
With copper rail FALSE
